Basic concepts

The most important concepts in Onedata are:

  • Spaces — distributed virtual volumes, where users can organize their data,
  • Providers — entities who support user spaces with actual storage resources exposed via Oneprovider services,
  • Zones — federations of providers that enable the creation of closed or interconnected communities, managed by Onezone services.

Spaces

All data stored in Onedata is organized into Spaces. Spaces can be seen as virtual directories or volumes, which can contain an arbitrary directory and file hierarchy while being distributed across multiple storage providers. Each space has to be supported by at least one provider, which means that this provider reserved a certain storage quota for this particular space. In case a space is supported by more providers, the total quota is the sum of storage space provisioned by all providers supporting it.

image-spaces-model

Each user can have any number of spaces. Spaces can be easily shared with other users and even exposed to the public. If you want to create a space for a community of users, Onedata supports user groups, which enable multiple users to access a single space sharing common authorization rules.

The data in spaces can be accessed using a wide-range of user interfaces, including a Web UI and a command-line client based on Fuse. It enables mounting your spaces to a local filesystem and accessing the data directly from a laptop, a cluster node, or a virtual machine deployed in the cloud.

For more information, see the dedicated chapters for Spaces and Groups.

Providers

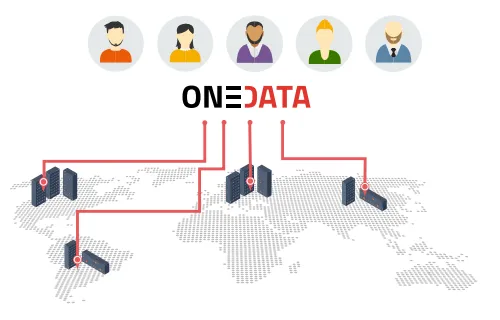

Each zone is composed of a network of providers who provision their storage resources to users. Anyone can become a Onedata provider by installing the Oneprovider service, attaching storage resources, and registering it in a particular Onezone service.

A user can use several providers simultaneously to manage his/her data. Onedata exposes the combined storage space of all providers to the user and ensures that access to the user’s data is performant and transparent.

image-overview-3d-map-with-users

Providers deploy Oneprovider services near physical storage resources, i.e. in computing and data centers or even personal computers. Providers have full control over which users can use their storage resources and in what amount.

Users use Onezone web interfaces (like the one at demo.onedata.org) to authenticate with Onedata and access the data located on the providers’ storage resources.

Zones

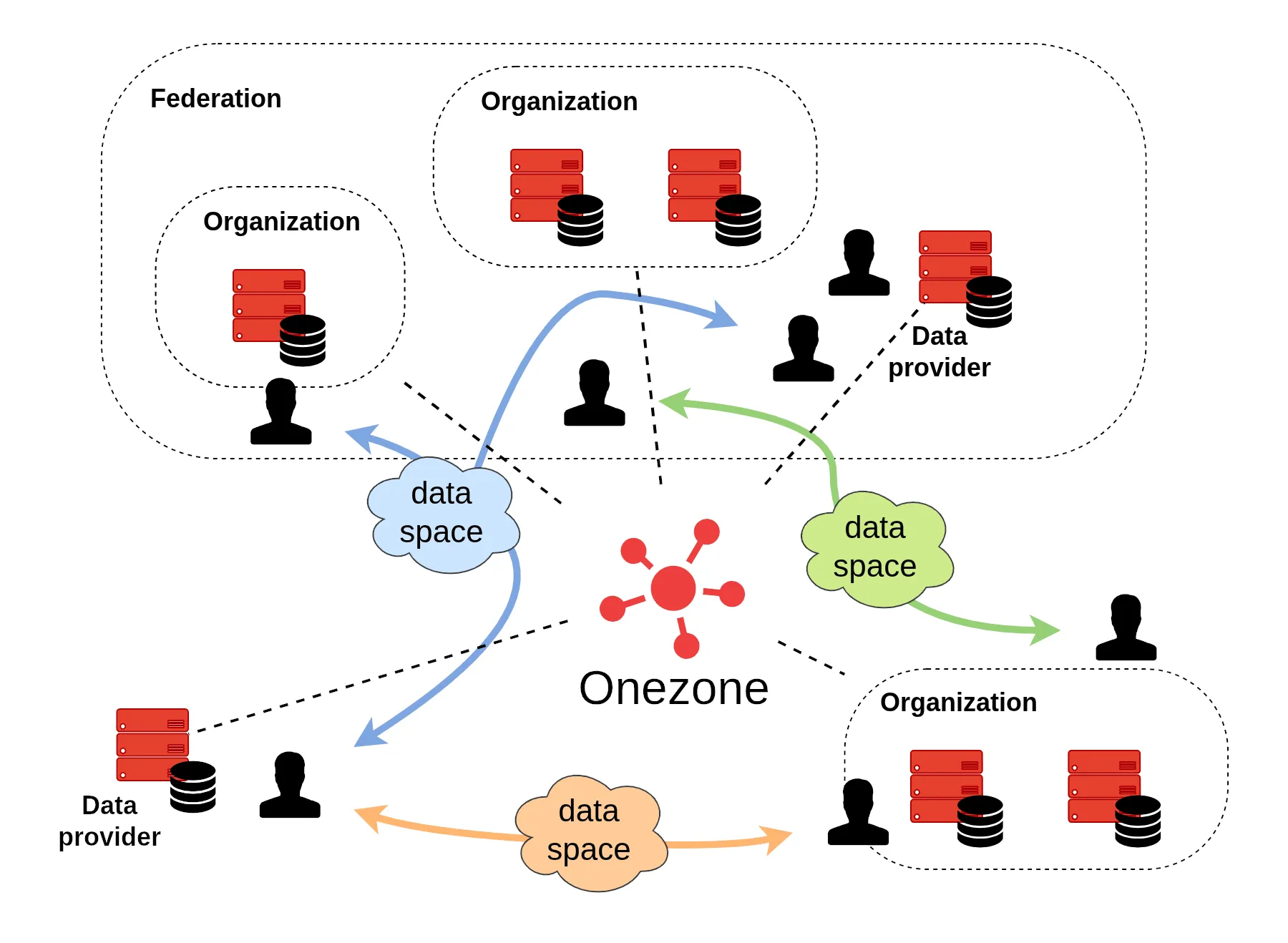

Onedata is a freely available software stack that can be used to build different ecosystems, called zones. Each Onedata zone constitutes an independent data management platform, bringing together multiple data centers (providers). At the heart of each Onedata ecosystem lies a Onezone service that serves as a center of authority and an entry point to the system, integrating with OIDC & SAML identity providers. While typically it operates on the level of a federation (e.g. EGI DataHub), in principle the size of a zone and the administrative setup of the providers building up an environment can be arbitrary.

image-onezone

While currently each zone is an isolated, independent ecosystem, the future roadmap for Onedata is to build a decentralized, peer-to-peer network of zones to allow (optional) collaboration between different ecosystems.
