# Login methods, OIDC & SAML

This documentation is valid for Onezone version 19.02.* or newer (config version 3).

OpenID Connect and SAML are the main authentication mechanisms used in Onedata. They allow users to reuse their accounts from other websites such as social media or infrastructure portals (Single Sign-On).

As a Onezone admin, your job is to decide which Identity Providers (IdPs) will be supported and to configure the authentication methods accordingly.

To that end, you will be editing the /etc/oz_worker/auth.config file on the Onezone node(s). In a docker-compose deployments, the most straightforward method is to mount the auth.config file in the volumes section.

NOTES

  1. The auth.config typically includes secrets and sensitive information; do not put it in your version control repository.

  2. Make sure to always specify the version => 3, at the top of your config.

  3. The auth.config file must be present on all cluster nodes hosting the Onezone worker service and must be identical.

# Table of contents

# Quickstart

By default, Onezone is packaged with a configuration that enables only Basic authentication, placed in /etc/oz_worker/auth.config. After deploying Onezone, a default user admin will be created, with a password equal to the emergency passphrase provided in Onepanel during deployment — this way you can log in to a fresh Onezone installation without further setup.

TIP

Deployment examples using docker-compose overwrite the auth.config file with a mount from the host. Simply remove this mount to use the default config (especially when you are not sure how to fill it in because mounting an incorrect config will disable all login methods). Here (opens new window) is the minimal auth.config that is installed by default.

You can follow the tutorial for Google IdP if you wish to enable login with a Google account.

# Automatic config upgrade

During the first startup after upgrading Onezone to a newer version, Onezone will attempt to automatically upgrade the config file to the latest version. In such a case, the old config file (auth.config) will be backed up to auth.config.v{vsn}.bak. The information on whether the upgrade has been successful will be present in Onezone logs. Always examine the upgraded auth.config file to make sure that it was correctly converted.

The current config version is 3 and has not changed since the quite old Onezone version 19.02.1, so an upgrade will likely not be required.

# Prerequisites

To integrate with an OpenID or SAML Identity Provider, you need to have a basic knowledge of those protocols and interact with the Identity Providers to obtain all required information, register your services, etc. In general, the necessary steps are:

# OpenID Connect

  1. Make sure your Onezone service is up and running on your domain, let it be onezone.example.com for the sake of this tutorial.

  2. Visit the official documentation or website of the Identity Provider you wish to use and find out the process of integration, which can be a bit different for each one. The process might be automatic (an online form or control panel), or require contact with the administrators.

  3. You will have to register your OpenID Connect client (Onezone), providing information such as domain, service name, etc. When asked for Redirection Endpoint (URL), specify the following:

    https://onezone.example.com/validate_login

  4. After finishing the registration process, you will be assigned a Client ID and a Client Secret.

  5. In the supported IdP list, create a new element by choosing a unique identifier (e.g. google). Fill out all the required information, including the Client ID and Secret. The protocol attribute must be set to openid.

  6. Depending on the IdP, there might be more configuration options regarding the OpenID flow — some of them are reflected in the plugin config.

  7. Put the auth.config on the machine running Onezone under /etc/oz_worker/auth.config and wait for up to a minute (default config caching time), or restart the Onezone service for immediate effect.

  8. You should see your IdP on the login page, verify that it works correctly by clicking on its icon to go through the login process. In case of any errors, examine the Onezone logs.

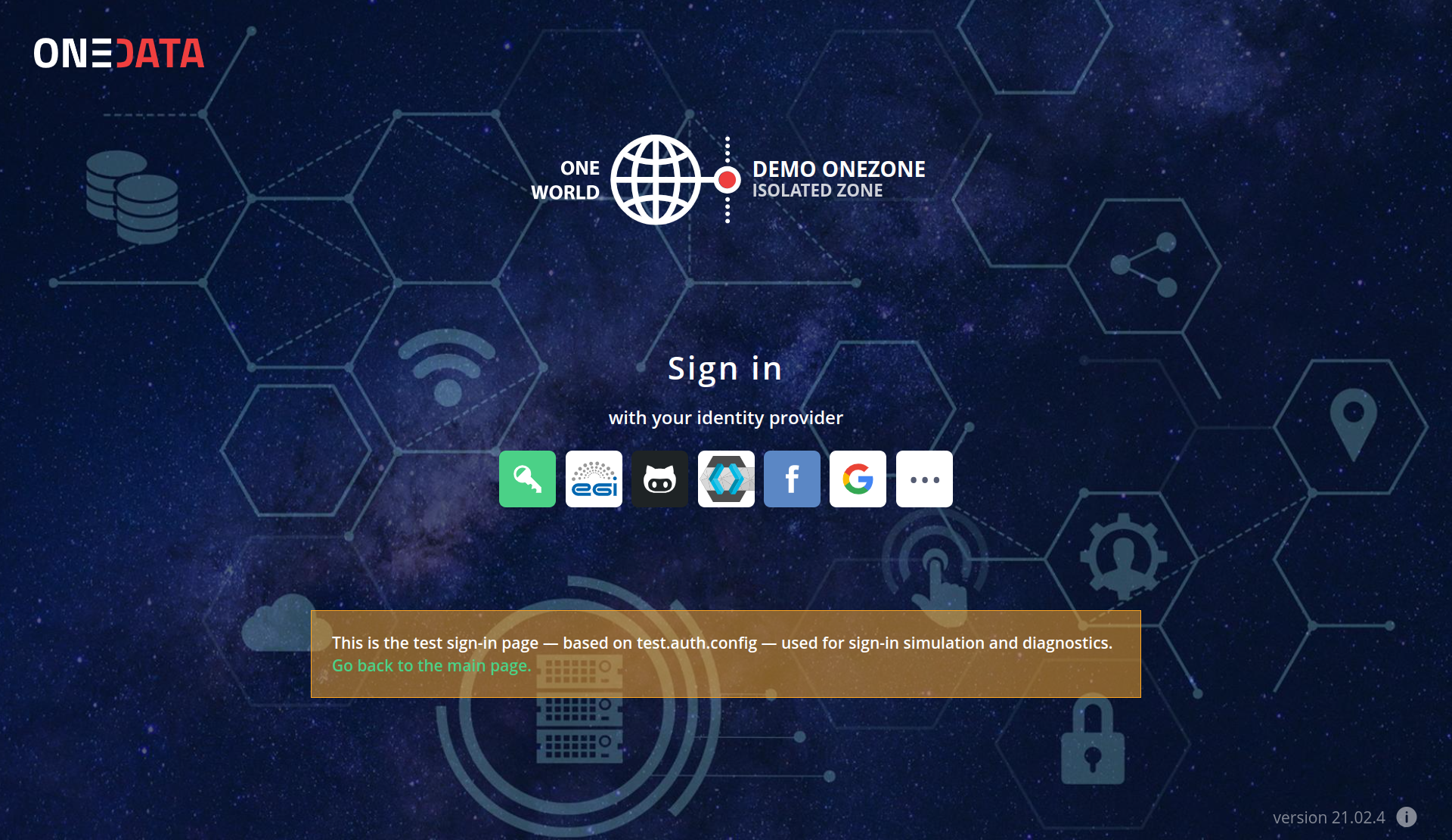

  9. At any time, you can use the test login page to test your auth.config without interrupting the Onezone service.

# SAML

  1. Make sure your Onezone service is up and running on your domain, let it be onezone.example.com for the sake of this tutorial.

  2. Generate a strong RSA x509 key pair (can be self-signed) and put them on your Onezone host — a tutorial can be found here (opens new window).

  3. Decide on your SAML Entity ID which is typically constructed using your domain, e.g. https://onezone.example.com/sp. It does not have to point to an existing resource,

  4. Fill out the SAML Config section of the auth.config, putting down all the required information, including the Entity ID and paths to the key and cert.

  5. Put the auth.config on the machine running Onezone under /etc/oz_worker/auth.config and wait for up to a minute (default config caching time), or restart the Onezone service for immediate effect.

  6. Visit https://onezone.example.com/saml/sp.xml and verify that the advertised metadata is correct. In case of any errors, examine Onezone logs.

  7. Visit the official documentation or website of the Identity Provider you wish to use (e.g. eduGAIN) and find out the process of integration, which can be a bit different for each one. The process might be automatic (an online form or control panel), or require contact with the administrators.

  8. Register your SAML Service Provider (Onezone). During the process, you will most probably be required to provide the URL to the SAML SP Metadata (pt. 6), or provide a static XML with the metadata (which can be simply downloaded from this endpoint).

  9. Create a new element in the supported IdP list, choose a unique identifier (e.g. elixir), and fill out all the information. The protocol attribute must be set to saml.

  10. Reload the auth.config again (pt. 5).

  11. You should see your IdP on the login page, verify that it works correctly by clicking on its icon to go through the login process. In case of any errors, examine Onezone logs.

  12. At any time, you can use the test login page to test your auth.config without interrupting the Onezone service.

# The login page

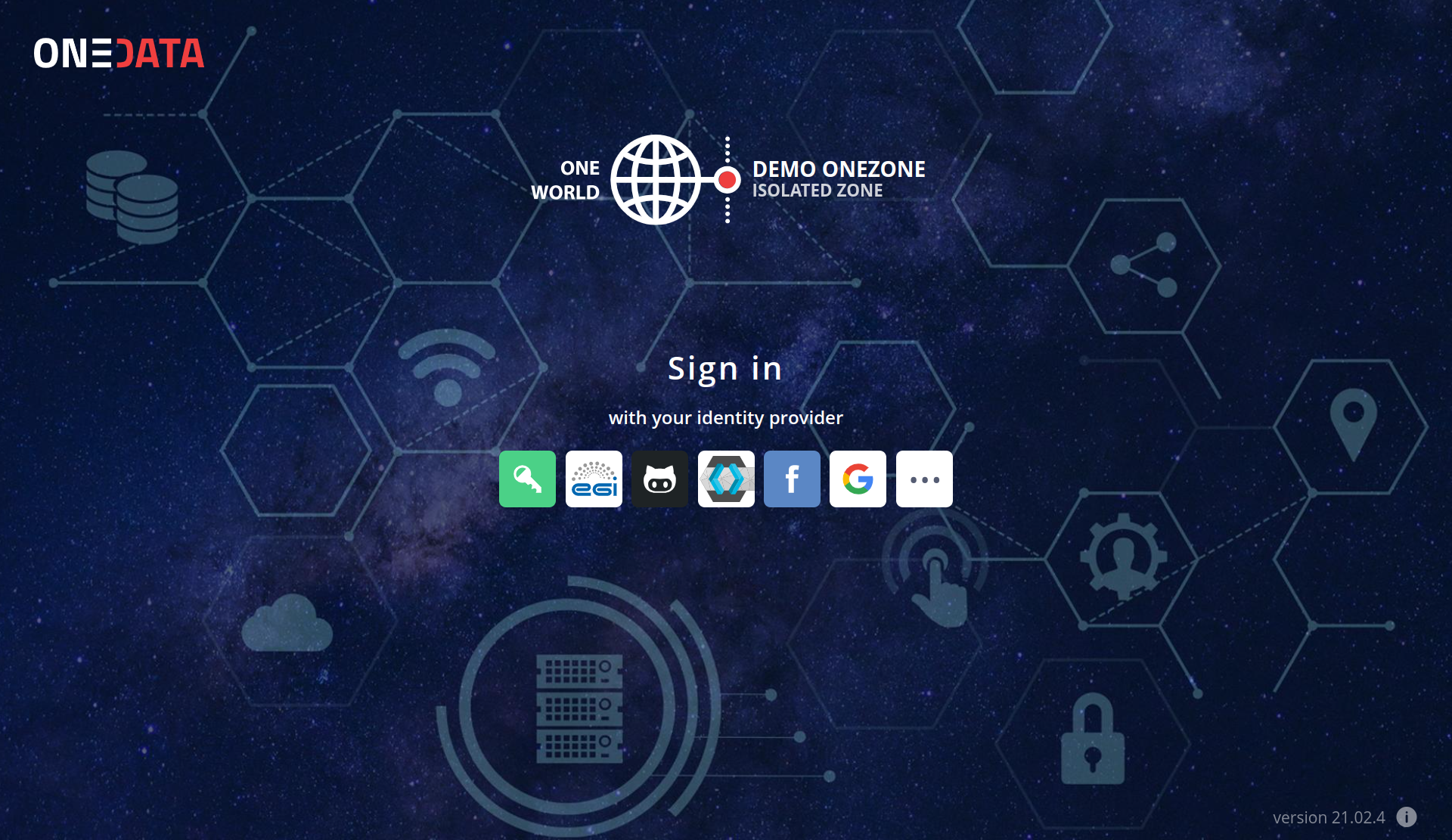

After adding your IdPs to the config file, you should see the corresponding icons on the login page (https://onezone.example.com). If there are more than 7 IdPs, the first 6 will be shown and the rest hidden in the ... button.

screen-1-login-page

# Config file structure

This section discusses the exemplary auth.config file that can be found in /etc/oz_worker/template.auth.config on the machine running Onezone. The complete exemplary config file is presented at the end of this section.

# General remarks

The auth.config file is written in Erlang format, quite similar to JSON:

  • #{Key1 => Value1, Key2 => Value2} is a key-value map (can be nested),
  • [ ... ] is a list,
  • {A, B} is a two-value tuple,
  • undefined is a special atom indicating that the given parameter is not specified (null),
  • "some text" is a string,
  • % ... is a comment,
  • true or false is a boolean value.

# Main sections

The config file has the following sections:

#{
    version => 3,

    % Allows to log in to Onezone using username & password.
    basicAuthConfig => #{
        enabled => true
    },

    openidConfig => #{
        enabled => true,
        ...
    },

    samlConfig => #{
        enabled => true,
        ...
    },

    supportedIdps => [
        ...
    ]
}

version — an obligatory field that defines the version of the config file, currently the newest is 3. If no version field is found, version 1 is assumed. Used by Onezone to determine if an upgrade is required.

# Basic auth config

basicAuthConfig — this section enables or disables Basic Auth — the possibility to log in to Onezone using username & password. This also controls the possibility of authorizing Onezone REST API operations using basic credentials.

NOTES

To allow Basic Auth login via the Onezone login page, the enabled flag must be set to true and the basicAuth method must be included on the supported IdP list.

The default admin user is always created during the installation process. Additional users can be created using the REST API (opens new window).

Disabling any protocol using the enabled flag in basicAuthConfig, openidConfig, or samlConfig section will disable all IdPs using that protocol and hide them from the login screen.

# OpenID config

openidConfig — this section contains common OpenID configuration and defaults that will be inherited by all OpenID IdPs.

click to expand
    openidConfig => #{
        % Enable OpenID login protocol — if disabled, all OpenID IdPs will be
        % hidden from the login page.
        enabled => true,
        % Default config for every OpenID IdP, can be overridden in IdP config
        defaultProtocolConfig => #{
            % Internal plugin that will be used for handling the login process -
            % if the IdP uses standard OpenID Connect protocol,
            % default_oidc_plugin is the way to go. If not, IdP specific plugin
            % can be implemented and specified here.
            plugin => default_oidc_plugin,
            % Config specific for default_oidc_plugin
            pluginConfig => #{
                % Scope requested from OpenID Connect IdP
                scope => "openid email profile",
                % HTTP method used to exchange auth code for an access token: post | get
                accessTokenAcquireMethod => post,
                % How the client secret should be sent to the IdP: urlencoded | inAuthHeader
                clientSecretPassMethod => urlencoded,
                % How user's access token should be sent to the IdP: urlencoded | inAuthHeader
                accessTokenPassMethod => inAuthHeader,
                % Allows to augment requests with additional data
                customData => #{
                    % Additional data for access_token endpoint request
                    accessToken => #{
                        % query string or post body parameters (key-value)
                        parameters => undefined,
                        % headers (key-value)
                        headers => undefined
                    },
                    % Additional data for userinfo endpoint request
                    userInfo => #{
                        parameters => undefined,
                        headers => undefined
                    }
                }
            },
            % Enables/disables authorization using access tokens from the IdP
            % Supported only in OpenID protocol
            authorityDelegation => #{
                % Enabled for this IdP
                enabled => true
                % The tokenPrefix attribute defines a prefix used to distinguish
                % tokens from given IdP. It defaults to "<idp>:", where <idp> is
                % the identifier used in config. Can be overriden in IdP config,
                % like the following:
                %       tokenPrefix => "my-idp/"
                % Exemplary token usage with with such config:
                % curl -H "X-Auth-Token: my-idp/lkj9s87rf1234SDfh6721hqd7991" ...
            },
            % If enabled, Onezone will ask for refresh tokens and store them so
            % that it is later possible to acquire user's access token issued by
            % given IdP without him being logged in. Only OIDC IdPs are supported.
            offlineAccess => true,
            % Defines how the attributes from OpenID user info should be mapped
            % to Onedata user attributes. Attributes must correspond to existing
            % OpenID attributes.
            attributeMapping => #{
                subjectId => {required, "sub"},
                fullName => {required, {any, ["name", "fullName"]}},
                username => {optional, "username"},
                emails => {optional, "email"},
                entitlements => {optional, "groups"},
                custom => {optional, "name"}
            },
            % Rules for mapping entitlements in the IdP into entitlements in Onedata.
            entitlementMapping => #{
                enabled => false
            }
        }
    },

More details:

  • plugin — specifies the Erlang module that handles the login process. If not specified, it defaults to default_oidc_plugin, which can handle most standard OpenID Connect IdPs. It is possible to implement your own, specialized plugin. Currently, Onezone supports one OpenID 1.0 IdP — the PLGrid organization that uses plgrid_openid_plugin — see this example.

  • pluginConfig — config specific for the default_oidc_plugin — see below.

  • authorityDelegation — see below.

  • offlineAccess — see below.

  • attributeMapping — see below.

  • entitlementMapping — see below.

# SAML config

samlConfig — similarly to openidConfig, this section contains common SAML configuration and defaults that will be inherited by all SAML IdPs.

click to expand
    samlConfig => #{
        % Enable SAML login protocol — if disabled, all SAML IdPs will be hidden
        % from the login page and the endpoint serving SAML metadata will be
        % disabled.
        enabled => true,
        % Information used to build SAML SP metadata XML, refer to SAML
        % documentation for details on below attributes.
        spConfig => #{
            entityId => "https://onezone.example.com/sp",
            certFile => "/etc/oz_worker/certs/saml_cert.pem",
            keyFile => "/etc/oz_worker/certs/saml_key.pem",
            organizationName => "My organization",
            organizationDisplayName => "My organization",
            techContactName => "John Doe",
            techContactEmail => "john.doe@onezone.example.com",
            % Should the metadata be signed with keyFile
            signMetadata => false,
            % Should the Auth Requests be signed with keyFile
            signRequests => true,
            % Should Onezone request signed assertions
            wantAssertionsSigned => true
        },
        % Default config for every SAML IdP, can be overridden in IdP config
        defaultProtocolConfig => #{
            % SSO binding — defines what type of request should be performed
            % to redirect the user to the IdP's login page. Possible values:
            % http_redirect (default) or http_post
            preferredSsoBinding => http_redirect,
            % Defines how the attributes from SAML user info should be mapped
            % to Onedata user attributes. Attributes must correspond to existing
            % SAML attributes.
            attributeMapping => #{
                subjectId => {required, "eduPersonTargetedID"},
                fullName => {required, {any, ["displayName", "surName"]}},
                username => {optional, "eduPersonPrincipalName"},
                emails => {optional, "mail"},
                entitlements => {optional, "eduPersonEntitlement"},
                custom => {optional, "eduPersonScopedAffiliation"}
            },
            % Rules for mapping entitlements in IdP into entitlements in Onedata.
            entitlementMapping => #{
                % Enable / disable entitlement mapping for given IdP
                enabled => true,
                % The name of the parent group to which all groups from this IdP
                % will belong (reflecting a Virtual Organization)
                voGroupName => undefined,
                % A special group that has admin rights to all groups from this
                % IdP.
                adminGroup => undefined,
                % Erlang module (plugin) that will be used to parse user's
                % entitlements from this IdP
                parser => nested_entitlement_parser,
                % Config specific for the nested_entitlement_parser
                parserConfig => #{
                    splitWith => "/",
                    topGroupType => unit,
                    topGroupPrivilegesInVo => member,
                    subGroupsType => team,
                    subGroupsPrivilegesInParent => member,
                    userPrivileges => member
                }
            }
        }
    },

More details:

  • spConfig — information put here will be used to build the SAML Service Provider XML, which will be advertised under https://onezone.example.com/saml/sp.xml. Remember that paths provided in the key/cert field must point to existing files, otherwise the XML will not be generated. Refer to SAML documentation for details on certain fields.

  • attributeMapping — see below

  • entitlementMapping — see below

# Supported IdPs

This section provides a list of all IdPs that will be available on the login page. The button order on the login page corresponds to the order of the entries:

click to expand
    supportedIdps => [
        % IdP identifier, must be a unique, arbitrary atom
        {myIdP, #{
            % Configuration of the login page button
            displayName => "My IdP",
            % Some predefined icons are built-in into the GUI app.
            % Their paths start with /assets/images/auth-providers.
            % For a custom icon, put it in:
            %   /var/www/html/oz_worker/custom/<path>
            % and reference it here like this: /custom/<path>
            iconPath => "/assets/images/auth-providers/default.svg",
            % Background color is useful for icons with transparency. Moreover,
            % after selecting an IdP, its icon disappears and a spinner is
            % shown — hence background color should be kept the same as icon's
            % background color (if any) for better visual effect.
            iconBackgroundColor => "#4BD187",

            % Which protocol is used for this IdP
            protocol => openid,
            % Config specific for given protocol
            protocolConfig => #{
                ...
            }
        }},

        {anotherIdP, #{
            ...
        }},

        ...
    ]

More details:

  • The IdP identifier (myIdP in this example) — must be unique across the auth.config file and be an Erlang atom (basically starting with a lowercase letter and containing only letters or underscores).

NOTE

The identifier basicAuth is reserved for Basic Auth and the more identifier is reserved for internal purposes and cannot be used.

  • iconPath — the path to the static image file that will be used for the IdP icon on the login page. Some predefined icons are available under the path /assets/images/auth-providers/<icon>.svg, to see the full list visit the Onezone GUI repo (opens new window). You will find information on how to add custom icons to the login page here. If not specified, iconPath defaults to /assets/images/auth-providers/default.svg.

  • protocol — one of basicAuth, saml, openid.

  • protocolConfig — depends on the protocol, see the following sections for config examples for each protocol.

# Basic Auth example

click to expand
        % basicAuth is a special IdP id reserved for signing in with username & password
        % and the only valid config entry using the basicAuth protocol.
        {basicAuth, #{
            % Configuration of the login page button
            displayName => "username & password",
            % Some predefined icons are built-in into the GUI app.
            % Their paths start with /assets/images/auth-providers.
            % For a custom icon, put it in:
            %   /var/www/html/oz_worker/custom/<path>
            % and reference it here like this: /custom/<path>
            iconPath => "/assets/images/auth-providers/basicauth.svg",
            % Background color is useful for icons with transparency. Moreover,
            % after selecting an IdP, its icon disappears and a spinner is
            % shown — hence background color should be kept the same as icon's
            % background color (if any).
            iconBackgroundColor => "#4BD187",

            % Which protocol is used for this IdP — basicAuth is the only
            % valid one for basicAuth IdP.
            protocol => basicAuth
        }},

# OpenID example

click to expand
{google, #{
    % Configuration of the login page button
    displayName => "Google",
    % Some predefined icons are built-in into the GUI app.
    % Their paths start with /assets/images/auth-providers.
    % For a custom icon, put it in:
    %   /var/www/html/oz_worker/custom/<path>
    % and reference it here like this: /custom/<path>
    iconPath => "/assets/images/auth-providers/google.svg",
    % Background color is useful for icons with transparency. Moreover,
    % after selecting an IdP, its icon disappears and a spinner is
    % shown — hence background color should be kept the same as icon's
    % background color (if any).
    iconBackgroundColor => "#F1514F",

    % Which protocol is used for this IdP
    protocol => openid,
    % Configuration specific for OpenID protocol — overrides the default
    protocolConfig => #{
        % Internal plugin that will be used for handling the login process -
        % if the IdP uses standard OpenID Connect protocol,
        % default_oidc_plugin is the way to go. If not, IdP specific plugin
        % can be implemented and specified here.
        plugin => default_oidc_plugin,
        % Config specific for default_oidc_plugin
        pluginConfig => #{
            % Client Id and secret acquired during registration
            clientId => "****************************************************",
            clientSecret => "****************************************************",
            % Defines how to resolve OpenID endpoints
            endpoints => #{
                % The XRDS endpoint, will be used if referenced in below endpoints
                xrds => "https://accounts.google.com/.well-known/openid-configuration",
                % standard OIDC endpoints — literal URLs or tuples {xrds, "key"} -
                % "key" will be extracted from the XRDS JSON.
                authorize => {xrds, "authorization_endpoint"},
                accessToken => {xrds, "token_endpoint"},
                userInfo => {xrds, "userinfo_endpoint"}
            },
            % Scope requested from OpenID Connect IdP
            scope => "openid email profile",
            % HTTP method used to exchange auth code for an access token: post | get
            accessTokenAcquireMethod => post,
            % How the client secret should be sent to the IdP: urlencoded | inAuthHeader
            clientSecretPassMethod => urlencoded,
            % How user's access token should be sent to the IdP: urlencoded | inAuthHeader
            accessTokenPassMethod => inAuthHeader,
            % Allows to augment requests with additional data
            customData => #{
                % Additional data for access_token endpoint request
                accessToken => #{
                    % query string or post body parameters (key-value)
                    parameters => #{"param1" => "val1"},
                    % headers (key-value)
                    headers => #{"header1" => "val1"}
                },
                % Additional data for userinfo endpoint request
                userInfo => #{
                    parameters => #{"param2" => "val2"},
                    headers => #{"header2" => "val2"}
                }
            }
        },

        % Enables/disables authorization using access tokens from the IdP
        % Supported only in OpenID protocol
        authorityDelegation => #{
            % Enabled for this IdP
            enabled => true,
            % The tokenPrefix attribute defines a prefix used to distinguish
            % tokens from given IdP.
            % Exemplary token usage with the below such config:
            % curl -H "X-Auth-Token: google:lkj9s87rf1234SDfh6721hqd7991" ...
            tokenPrefix => "google:"
        },
        % If enabled, Onezone will ask for refresh tokens and store them so
        % that it is later possible to acquire user's access token issued by
        % given IdP without him being logged in. Only OIDC IdPs are supported.
        offlineAccess => true,
        % Defines how the attributes from OpenID user info should be mapped
        % to Onedata user attributes. Attributes must correspond to existing
        % OpenID attributes.
        attributeMapping => #{
            subjectId => {required, "sub"},
            fullName => {required, {any, ["name", "fullName"]}},
            username => {optional, "username"},
            emails => {optional, "email"},
            entitlements => {optional, "given_name"},
            custom => {optional, "given_name"}
        },
        % Rules for mapping entitlements in the IdP into entitlements in Onedata.
        entitlementMapping => #{
            enabled => true,
            % The name of the parent group to which all groups from this IdP
            % will belong (reflecting a Virtual Organization)
            voGroupName => undefined,
            % A special group that has admin rights to all groups from this
            % IdP.
            adminGroup => undefined,
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupType => team,
                groupPrivilegesInVo => member,
                userPrivileges => member
            }
        }
    }
}},

This IdP will inherit all the configuration from openidConfig -> defaultProtocolConfig, apart from the parameters that are overridden here.

TIP

To nullify a parameter specified in the default config, set it explicitly to undefined in the IdP config — otherwise, it will be inherited.

More details on pluginConfig:

  • endpoints — this section defines how to resolve standard OpenID endpoints (authorize, accessToken, userInfo). Most IdPs use an XRDS endpoint to serve a JSON containing all required URLs. To use the XRDS, simply specify the xrds field and reference the desired keys from the JSON, like in the example above. Alternatively, you can directly enter the URLs, eliminating the need for an XRDS endpoint. The userInfo endpoint is a special case that allows you to specify multiple endpoints. Information gathered from them will be aggregated, like in this example:
endpoints => #{
    authorize => "https://github.com/login/oauth/authorize",
    accessToken => "https://github.com/login/oauth/access_token",
    userInfo => [
        "https://api.github.com/user",
        {"emails", "https://api.github.com/user/emails"}
    ]
},

In the above example, JSON collected from "https://api.github.com/user" will be appended as-is to user attributes, and the JSON from "https://api.github.com/user/emails" will be inserted under the key "emails".

  • scope — what attributes are requested from the IdP. Defaults to "openid email profile".

  • accessTokenAcquireMethod — get or post, defines the HTTP method used to exchange the auth code for an access token. Defaults to post.

  • clientSecretPassMethod — urlencoded or inAuthHeader, defines how the Client ID and Secret should be sent to the IdP's access token endpoint. Defaults to urlencoded.

  • accessTokenPassMethod — urlencoded or inAuthHeader, defines how the Access Token should be sent to the IdP's userInfo endpoint. Defaults to urlencoded.

  • customData — allows augmenting requests to the IdP with arbitrary data, appended to the request data (query string or post body) or headers. Can be specified for accessToken or userInfo endpoints.

Refer to the IdP's documentation to find out what should be inserted in the attributes: endpoints, scope, accessTokenAcquireMethod, clientSecretPassMethod, accessTokenPassMethod, customData. Note that some of them can be configurable on the IdP side too.

# SAML example

click to expand
        {elixir, #{
            % Configuration of the login page button
            displayName => "Elixir",
            % To use the icon like below, put it in:

            %   /var/www/html/oz_worker/custom/images/elixir.svg
            iconPath => "/custom/images/elixir.svg",
            % Background color is useful for icons with transparency. Moreover,
            % after selecting an IdP, its icon disappears and a spinner is
            % shown — hence background color should be kept the same as icon's
            % background color (if any).
            iconBackgroundColor => "#FF7A04",

            % Which protocol is used for this IdP
            protocol => saml,
            % Configuration specific for SAML protocol — overrides the default
            protocolConfig => #{
                % URL pointing to IdP SAML metadata XML
                metadataUrl => "https://login.elixir-czech.org/proxy/saml2/idp/metadata.php",
                % SSO binding — defines what type of request should be performed
                % to redirect the user to the IdP's login page. Possible values:
                % http_redirect (default) or http_post
                preferredSsoBinding => http_redirect,
                % Defines how the attributes from SAML user info should be mapped
                % to Onedata user attributes. Attributes must correspond to existing
                % SAML attributes.
                attributeMapping => #{
                    subjectId => {required, "eduPersonUniqueId"},
                    fullName => {required, "displayName"},
                    username => {optional, "eduPersonPrincipalName"},
                    emails => {optional, "mail"},
                    entitlements => {optional, "eduPersonEntitlement"},
                    custom => {optional, "eduPersonScopedAffiliation"}
                },
                % Rules for mapping entitlements in IdP into entitlements in Onedata.
                entitlementMapping => #{
                    % Enable / disable entitlement mapping for given IdP
                    enabled => true,
                    % The name of the parent group to which all groups from this IdP
                    % will belong (reflecting a Virtual Organization)
                    voGroupName => "Elixir",
                    % A special group that has admin rights to all groups from this
                    % IdP.
                    adminGroup => "elixir_test:tsi-admin",
                    % Erlang module (plugin) that will be used to parse user's
                    % entitlements from this IdP
                    parser => nested_entitlement_parser,
                    % Config specific for the nested_entitlement_parser
                    parserConfig => #{
                        splitWith => ":",
                        topGroupType => unit,
                        topGroupPrivilegesInVo => member,
                        subGroupsType => team,
                        subGroupsPrivilegesInParent => member,
                        userPrivileges => member
                    }
                }
            }
        }}
    ]

This IdP will inherit all the configuration from samlConfig -> defaultProtocolConfig, apart from the parameters that are overridden here.

TIP

To nullify a parameter specified in the default config, set it explicitly to undefined in the IdP config — otherwise, it will be inherited.

Unlike openid, SAML IdPs do not have pluggable handlers and hence there is no plugin or pluginConfig section (all config is expressed on the procotolConfig level).

# OpenID & SAML similarities

Note that the following sections in protocolConfig of openid and saml protocols are syntactically and functionally the same:

However, only the openid protocol supports authority delegation and offline access.

# Authority Delegation

Onezone service supports authority delegation using other OpenID connect providers. When enabled, it allows users to directly use their access tokens acquired from IdPs (e.g. from GitHub) to authorize operations in Onezone.

To enable this feature for specific IdP, the authorityDelegation section has to be added to the IdP's protocol config, for instance:

authorityDelegation => #{
    % Enabled for this IdP
    enabled => true,
    % The tokenPrefix attribute defines a prefix used to distinguish
    % tokens from given IdP. It defaults to "<idp>:", where <idp> is
    % the IdP identifier used in config.
    tokenPrefix => "github/"
},

In such case, users can directly access the Onezone API using access tokens obtained from the IdP by prefixing the access token and placing it in the X-Auth-Token or Authorization: Bearer <token> header:

X-Auth-Token: github/e72e16c7e42f292c6912e7710c838347ae178b4a
# is equivalent to
Authorization: Bearer github/e72e16c7e42f292c6912e7710c838347ae178b4a

where e72e16c7e42f292c6912e7710c838347ae178b4a is the actual GitHub access token.

# Offline access

Onezone service can act as a dispenser for access tokens issued by IdPs that users are logging in with. If offline access is enabled in the configuration, Onezone will request refresh tokens and store them. This enables later acquisition of a user's access token, issued by a specific IdP, even if the user is not currently logged in. Only OIDC IdPs are supported, and offline access must be supported by the given IdP.

To enable this feature for specific IdP, the offlineAccess field has to be added to the IdP's protocol config, for instance:

offlineAccess => true,

TIP

Enabling offlineAccess will cause Onezone to add the access_type=offline parameter to OIDC authorization requests. Some IdPs might also require adding the offline_access scope, in which case you must add it manually in the scope field of the plugin config.

WARNING

When offline access is combined with enabled authority delegation, it is important to consider the security implications. With authority delegation, every Onedata provider actively used by a user will have the ability to acquire the user's IdP access token. As a result, these providers will be able to gain full authorization on behalf of the user.

IdP access tokens can be acquired using the Onezone REST API (opens new window).

# Attribute Mapping

Onezone collects information about users from SAML / OpenID, including:

  • subjectId — user's unique, permanent ID assigned by the IdP, mandatory (login will fail if mapping cannot be found),

  • fullName — given names and surname, e.g. "John Doe",

  • username — a human-readable identifier, unique across the system, e.g. "johndoe13". This makes it easier to identify the user and can be used for signing in with a password (if this sign-in method is enabled for the given user),

  • emails — a list of user's emails,

  • entitlements — a list of user's entitlements to groups in the IdP, which can later be mapped to groups in Onedata using entitlement mapping,

  • custom — arbitrary JSON received from the IdP, which can be useful during later integration with storage systems (Local User Mapping (LUMA)).

These attributes constitute a linked account object. It can be expressed in JSON format:

{
	"idp": "elixir",
	"subjectId": "1234567890@elixir-europe.org",
	"fullName": "John Doe",
	"username": "jodoe",
	"emails": ["john.doe@google.com"],
	"entitlements": ["group1", "group2"],
	"custom": {
		"organization": "My Organization",
		"roles": ["role1", "role2", "role3"]
	}
}

Attribute mapping is used to map attributes received from Identity Providers into linked account objects in Onedata.

# Merging linked accounts into Onedata user

Every user in Onedata can have one or more linked accounts. Upon the first login, a new Onedata user is created based on information gathered from the IdP that he logged in with:

userId: md5(<IdP>:<subjectId>)
fullName: <fullName>        % can be undefined
username: <username>        % can be undefined
emails: <emails>
linkedAccounts: [<linked-acc-json>]

From now on, userId in Onedata will not change (i.e. it is derived from the subjectId in the first IdP the user has logged in with). fullName and username will also be unchanged by consecutive log-ins, even if the IdP attributes change. emails are always a list of emails aggregated from all linked accounts.

TIP

New accounts can be linked after logging in, in the user profile menu. It is not possible to link the same account to two different users.

Complete user data, after logging in with the above Elixir account, would look like the following:

{
	"userId": "fa81af19783e3eea7d7e80c1d89f5370",
	"fullName": "John Doe",
	"username": "jodoe",
	"emails": ["john.doe@google.com"],
	"linkedAccounts": [{
        "idp": "elixir",
        "subjectId": "1234567890@elixir-europe.org",
        "fullName": "John Doe",
        "username": "jodoe",
        "emails": ["john.doe@google.com"],
        "entitlements": ["group1", "group2"],
        "custom": {
            "organization": "Elixir",
            "roles": ["role1", "role2", "role3"]
        }
    }]
}

Assume that the user links another account, e.g. from EGI, which yields the following linked account object:

{
    "idp": "egi",
	"subjectId": "12345678-1234-1234-1234-12345678",
	"fullName": "John Doe",
	"username": "john-doe",
	"emails": ["john.doe@yahoo.com"],
	"entitlements": [
        "urn:mace:egi.eu:group1#aai.egi.eu",
        "urn:mace:egi.eu:group2#sso.egi.eu"
    ],
	"custom": {
	    "gender": "M"
	}
}

After that operation, the complete user data would look like the following:

{
	"userId": "fa81af19783e3eea7d7e80c1d89f5370",
	"fullName": "John Doe",
	"username": "jodoe",
	"emails": ["john.doe@google.com", "john.doe@yahoo.com"],
	"linkedAccounts": [{
        "idp": "elixir",
        "subjectId": "1234567890@elixir-europe.org",
        "fullName": "John Doe",
        "username": "jodoe",
        "emails": ["john.doe@google.com"],
        "entitlements": ["group1", "group2"],
        "custom": {
            "organization": "Elixir",
            "roles": ["role1", "role2", "role3"]
        }
    },{
        "idp": "egi",
        "subjectId": "12345678-1234-1234-1234-12345678",
        "fullName": "John Doe",
        "username": "john-doe",
        "emails": ["john.doe@yahoo.com"],
        "entitlements": "entitlements": [
            "urn:mace:egi.eu:group1#aai.egi.eu",
            "urn:mace:egi.eu:group2#sso.egi.eu"
        ],
        "custom": {
            "gender": "M"
      	}
    }]
}

This user data is used as input in Local User Mapping (LUMA) — when mapping Onedata users into storage users within Oneprovider.

TIP

The user data can also be retrieved using the REST API (opens new window).

# Attribute mapping rules

Attribute mapping is performed based on the IdP configuration in auth.config. The section looks like the following:

attributeMapping => #{
  subjectId => {required, <rule>},
  fullName => {optional, <rule>},
  username => undefined,
  emails => {optional, <rule>},
  entitlements => {plugin, my_entitlement_parser},
  custom => {required, <rule>}
}

Allowed mappings are:

  • undefined — this attribute is not mapped at all, it is equivalent to deleting the attribute mapping completely from the config.

  • {required, <rule>} — this attribute will be mapped according to <rule>, if it's not possible to resolve the attribute the login will fail.

  • {optional, <rule>} — this attribute will be mapped according to <rule>, if it's not possible to resolve the attribute the mapped value will be empty (undefined).

  • {plugin, Module} — allows using an arbitrary plugin to perform the mapping. Module:map_attribute(Attr, IdPAttributes) will be called and should return the resolved attribute value as {ok, Value}, or {error, Reason} if it could not be found. The IdPAttributes argument is an Erlang map (keys are binaries). The module must be placed in the plugin directory (opens new window). For more info, refer to attribute mapper. Here is an example:

fullName => {plugin, my_attr_mapper}
% would call my_attr_mapper:map_attribute(fullName, IdPAttributes)

<rule> can be a complex, nested term built from the following expressions:

  • "attrName" — name of an attribute. If such a key is present in attributes received from IdP, the rule is expanded to its value. Here is an example:
id => {required, "id"}
emails => {optional, "mail"}
  • {keyValue, "attrName"} — similar to the "attrName" rule, but the result will contain both the attribute key and value as a JSON object. Here is an example:
custom => {optional, {keyValue, "schacHomeOrganization"}}
% would set user's custom value to
{"custom": {"schacHomeOrganization": "orgName"}}
% instead of just
{"custom": "orgName"}
  • {keyValue, "keyName", <rule>} — similar to the {keyValue, "attrName"}, but <rule> can expand to any value, and the key in the result JSON can be specified explicitly. Here is an example:
custom => {optional, {keyValue, "organization", "schacHomeOrganization"}}
% would set user's custom value to:
{"custom": {"organization": "orgName"}}
  • {str, "literal"} — the rule will be expanded to the literal string. Here is an example:
fullName => {required, {str, "John Doe"}}
% would make all users have the same fullName; `"John Doe"
  • {str_list, ["str1", "str2"]} — the rule will be expanded to a list of literal strings. Here is an example:
entitlements => {required, {str_list, ["group1", "group2, "group3"]}}
% would make all users have the same three entitlements
  • {nested, ["key1", "key2", {list, "key3"}]} — the rule will be expanded to a value nested in a JSON. The special expression {list, key} can be used to parse a list of JSON objects, where each object has a specific key. Here is an example:
emails => {nested, ["emails", {list, "email"}]}
% would parse the following JSON:
{"emails": [
    {"email": "abc@example.com", "verified": true},
    {"email": "def@example.com", "verified": false}
]}
% into the following list of emails:
["abc@example.com", "def@example.com"]
  • {replace, "regex", "replacement", <rule>} — this rule replaces matching substrings with the specified replacement. <rule> can expand to a string or a list of strings, in which case the operation will be repeated on each string. The implementation uses Erlang's re:replace/4 function, so the regular expressions and replacements must be built according to Erlang's regex format, which differs slightly from other formats. Here is an example:
fullName => {replace, "(.*) (.*) (.*)", "\\1 \\3", "fullName"}
% would change all 3-part names to 2-part, leaving out the middle one
% (e.g. John II Doe -> John Doe). Unmatched strings are not modified.
  • {concat, [<ruleA>, <ruleB>, ...]} — concatenates a list of strings into one string, one by one: ((<ruleA> + <ruleB>) + <ruleC>) + <ruleD> .... Every <rule> must expand to a string or a list of strings. If a single string is concatenated with a list, it is concatenated with every element of the list. If two lists are concatenated, the elements are concatenated in pairs, creating a new list. If any of the lists is shorter, it is padded with empty strings. Examine possible combinations:
{concat, []} ->
    undefined
{concat, [{str, "a"}]} ->
    "a"
{concat, [{str, "a"}, {str, "b"}]} ->
    "ab"
{concat, [{str, "a"}, {str_list, ["1", "2", "3"]}]} ->
    ["a1", "a2", "a3"]
{concat, [{str_list, ["a", "b", "c"]}, {str, "1"}]} ->
    ["a1", "b1", "c1"]
{concat, [{str_list, ["a", "b", "c"]}, {str_list, ["1", "2", "3"]}]} ->
    ["a1", "b2", "c3"]
{concat, [{str_list, ["a", "b", "c", "d"]}, {str_list, ["1", "2"]}]} ->
    ["a1", "b2", "c", "d"]

Example:

{entitlements => {concat, [{str, "group:"}, "groups"]}
% would prefix every user's entitlement with "group:"
  • {join, "<string>", <rule>} — joins a list of strings with given string. <rule> must expand to a list of strings, or a single string (in which case the join just returns the unchanged string). Here is an example:
{join, " ", "nameTokens"}
% would parse the following JSON:
{"nameTokens": ["John", "Doe", "Junior"]}
% into the following fullName:
"John Doe Junior"
  • {split, "<string>", <rule>} — splits a string into a list of strings on given string. <rule> must expand to a string or a list of strings in which case the results of splitting every string will be appended in one result list. Here is an example:
{entitlements => {optional, {split, ",", "groups"}}
% would parse the following JSON:
{"groups": "group1,team2,role3"}
% into the following list of entitlements:
["group1", "team2", "role3"]
% or the following JSON:
{"groups": ["group1,group2", "team3,team4"]}
% into the following list of entitlements:
["group1", "group2", "team3", "team4"]
  • {append, [<ruleA>, <ruleB>, ...]} — appends lists or JSON objects together. Every <rule> must expand to a string, list, or JSON. Examine possible combinations:
{append, []} ->
   []
{append, [{str, "a"}]} ->
   ["a"]
{append, [{str, "a"}, {str_list, ["c", "d"]}]} ->
   ["a", "c", "d"]
{append, [{str_list, ["a", "b"]}, {str_list, ["c", "d"]}]} ->
   ["a", "b", "c", "d"]
{append, [{keyValue, "groups"}, {keyValue, "teams"}]} ->
   {"groups": [...], "teams": [...]}

Example:

{custom => {append, [{keyValue, "organization"}, "customAttrs"]}
% provided that "customAttrs" is a nested JSON, would give something like:
{"organization": "my-org", "cusAttr1": "val1", "cusAttr2": "val2"}
  • {filter, "<regex>", <rule>} — filters a list, leaving only the strings that match the <regex>. <rule> must expand to a list of strings, or a string, in which case it will be treated as a list with one element. Here is an example:
{emails => {filter, ".*@gmail.com", "emails"}
% would leave only the emails from gmail.com
  • {any, [<ruleA>, <ruleB>, ...]} — tries all rules one by one until any of them gives a valid result. In case all of them fail, returns the undefined value. Here is an example:
{fullName => {optional, {any, [{concat, [{str, "John "}, "surName"]}, "userName"]}}
% would set all users' names to:
%   a) "John <surName>" if the attribute "surName" was found
%   b) "<userName>" if the attribute "userName" was found
%   c) undefined (displayed in GUI as "Unnamed User") if none of the attributes
%      was found (if 'optional' was changed to 'required', the login would fail).

The following example, which uses all possible rules:

click to expand
attributeMapping => #{
    subjectId => {required, {replace, "c", "x", "id"}},
    fullName => {optional, {any, ["fullName", {join, " ", "nameTokens"}]}},
    username => undefined,
    emails => {required, {filter, ".*@my.org", {split, ",", "emails"}}},
    entitlements => {optional, {concat, [
        {str_list, ["a", "b", "c", "d"]},
        {str, ":"},
        "groups",
        {str, "/"},
        {str_list, ["1", "2", "3", "4"]}
    ]}},
    custom => {optional, {append, [
        "customAttrs",
        {keyValue, "organization"},
        {keyValue, "roles", {nested, ["roles", {list, "role"}, "displayName"]}}
    ]}}
}

would parse the following JSON:

click to expand
{
	"id": "abcdef1c2c3c4c",
	"nameTokens": ["John", "Doe", "Jr"],
    "username": "jodoe",
	"emails": "joedoe@example.com,john.doe@my.org",
	"groups": ["some", "entitlement", "from", "idp"],
	"roles": [
        {"role": {
            "displayName": "role1"
        }},
        {"role": {
            "displayName": "role2"
        }},
        {"role": {
            "displayName": "role3"
        }}],
	"organization": "My Organization",
	"customAttrs": {
		"thirdAttr": {
			"nested": "json"
		},
		"secondAttr": ["second", "value"],
		"fourthAttr": 17,
		"firstAttr": "firstValue"
	}
}

into the following Onedata user attributes:

click to expand
{
	"idp": "my-idp",
	"subjectId": "abxdef1x2x3x4x",
	"fullName": "John Doe Jr",
	"username": null,
	"emails": ["john.doe@my.org"],
	"entitlements": ["a:some/1", "b:entitlement/2", "c:from/3", "d:idp/4"],
	"custom": {
		"firstAttr": "firstValue",
		"secondAttr": ["second", "value"],
		"fourthAttr": 17,
		"thirdAttr": {
			"nested": "json"
		},
		"organization": "My Organization",
		"roles": ["role1", "role2", "role3"]
	}
}

# Attribute mapping inheritance

If attribute mapping is specified in defaultProtocolConfig, it will be inherited by all IdPs using that protocol (openid or saml) — just like all other attributes. It is possible to override each key in the IdP config. For example, the following config (default and IdP specific):

defaultProtocolConfig => #{
    attributeMapping => #{
        subjectId => {required, "eduPersonUniqueID"},
        fullName => {required, ["displayName", "surName"]},
        username => {optional, "eduPersonPrincipalName"},
        emails => {optional, "mail"}
    }
}
...
{my_idp, #{
    protocolConfig => #{
        attributeMapping => #{
            subjectId => {required, "eduPersonTargetedID"},
            % if not explicitly set to undefined, login rules will be
            % inherited from defaultProtocolConfig!
            username => undefined,
            entitlements => {optional, "groups"}
        }
    }
}

is equivalent to the following config for the given IdP:

{my_idp, #{
    protocolConfig => #{
        attributeMapping => #{
            subjectId => {required, "eduPersonTargetedID"},
            fullName => {required, ["displayName", "surName"]},
            username => undefined,
            emails => {optional, "mail"},
            entitlements => {optional, "groups"}
        }
    }
}

# Exemplary IdP attributes

Bear in mind that typical attributes received via OpenID and SAML are different. They differ depending on the IdP — refer to their documentation to correctly build attribute mapping rules. Nevertheless, there is a certain set of universally used attributes. The below examples use fairly common attributes:

OpenID attributes example (EGI Check-In)

{
	"sub": "12345678-1234-1234-1234-12345678",
	"preferred_username": "johndoe",
	"name": "John Doe",
	"eduperson_entitlement": [
        "urn:mace:egi.eu:group:group1#sso.egi.eu",
        "urn:mace:egi.eu:group:group2#sso.egi.eu",
        "urn:mace:egi.eu:group:registry:nested-group:role=member#aai.egi.eu",
    ],
	"given_name": "John",
	"family_name": "Doe",
	"email_verified": true,
	"email": "john.doe@google.com"
}

SAML attributes example (Elixir Europe)

{
	"eduPersonUniqueId": "1234567890@elixir-europe.org",
	"displayName": "John Doe",
	"eduPersonPrincipalName": "johndoe@elixir-europe.org",
	"mail": "john.doe@gmail.com",
	"eduPersonEntitlement": [
	    "elixir_test:members",
	    "elixir_test:OneData",
	    "elixir_test:OneData:subgroup-1",
	    "elixir_test:OneData:subgroup-1:subgroup-2"
	],
	"https://login.elixir-europe.org/attribute-definition/forwardedScopedAffiliation/v1": "affiliate@elixir-europe.org",
	"schacHomeOrganization": "google.com"
}

NOTE

Although the SAML attributes are received in SAML assertions in the XML format, they are internally converted to JSON and treated analogically to OpenID attributes during attribute mapping.

SAML specification defines a certain set of attributes that can be served by IdPs. Onezone recognizes the most commonly used ones — see the table below. It presents the attribute type identifiers and their human-readable aliases used in Onezone. All received attributes with the below identifiers will be translated to corresponding aliases, and you must use the aliases in attribute mapping rules. Of course, the IdP might send attributes that are not listed in the below table or are completely customary for the considered organization. Then, in your attribute mapping rules, use the literal type identifiers that appear in the assertion XML. They might be custom strings, usually starting with urn:oid: or URIs (as in the above example for Elixir) — refer to the IdP's documentation.

alias SAML attribute type identifier
"uid" urn:oid:0.9.2342.19200300.100.1.1
"displayName" urn:oid:2.16.840.1.113730.3.1.241
"givenName" urn:oid:2.5.4.42
"commonName" urn:oid:2.5.4.3
"surName" urn:oid:2.5.4.4
"mail" urn:oid:0.9.2342.19200300.100.1.3
"eduPersonTargetedID" urn:oid:1.3.6.1.4.1.5923.1.1.1.10
"eduPersonUniqueID" urn:oid:1.3.6.1.4.1.5923.1.1.1.13
"eduPersonPrincipalName" urn:oid:1.3.6.1.4.1.5923.1.1.1.6
"eduPersonScopedAffiliation" urn:oid:1.3.6.1.4.1.5923.1.1.1.9
"eduPersonEntitlement" urn:oid:1.3.6.1.4.1.5923.1.1.1.7
"schacHomeOrganization" urn:oid:1.3.6.1.4.1.25178.1.2.9
"telephoneNumber" urn:oid:2.5.4.20
"organizationName" urn:oid:2.5.4.10
"organizationalUnitName" urn:oid:2.5.4.11
"employeeNumber" urn:oid:2.16.840.1.113730.3.1.3
"employeeType" urn:oid:2.16.840.1.113730.3.1.4

Exemplary attribute mapping using known and custom SAML attributes:

 attributeMapping => #{
    subjectId => {required, "eduPersonTargetedID"},
    fullName => {optional, {any, ["displayName", {concat, ["givenName", {str, " "}, "surName"]}]}},
    username => {optional, "eduPersonPrincipalName"},
     % Custom attribute type as a string
    email => {optional, "idp-custom-attribute"},
     % Custom attribute type in form of urn:oid:xxx
    entitlements => {optional, "urn:oid:9.9.9.9.9"},
     % Custom attribute type in form of an URI
    custom => {required, "https://login.elixir-europe.org/attribute-definition/forwardedScopedAffiliation/v1"}
 }

# Entitlement Mapping

Entitlement mapping is used to automatically map users entitlements in an IdP to group memberships in Onedata. Entitlements can be understood as the right to be a member of a group (or, possibly, a group structure) with certain privileges.

For each entitlement, a group is created in Onedata that mirrors the group in the IdP, together with hierarchical relations (nested groups). They are created gradually at every user login, which causes reconciliation of all his entitlements, but only them (Onedata is not aware of the other groups from the IdP, unless they come with another user login). Hence, typically, Onedata holds a subset of all groups originating from an IdP.

All IdP-related groups in Onedata are protected — they cannot be deleted or modified, and their membership or privileges in other protected groups cannot be changed. They can however be added to non-IdP groups and vice-versa, as well as other resources in Onedata. Users can be added manually to the IdP-related groups.

The section in auth.config concerning the Entitlement Mapping has the following structure (example):

 entitlementMapping => #{
     enabled => true,
     voGroupName => "my-organization",
     adminGroup => "all_users:admins",
     parser => nested_entitlement_parser,
     parserConfig => #{
         topGroupType => unit,
         topGroupPrivilegesInVo => member,
         subGroupsType => team,
         subGroupsPrivilegesInParent => member,
         userPrivileges => member
     }
 }

  • enabled — enable or disable entitlement mapping for the given IdP.

  • voGroupName — if specified, a special VO group will be created and all groups originating from the given IdP will be added as members (subgroups) to it. Note that if an entitlement overlaps with the voGroupName, it will be considered the same as the VO group. See the below table for examples on how different entitlements would be mapped assuming that the voGroupName is set to myVO:

entitlement group structure in Onedata
members myVO/members
myVO myVO
myVO/members myVO/members
users/admins myVO/users/admins

  • adminGroup — (formerly known as Super Group) if specified, it defines an Admin Group for the given IdP. The adminGroup should be an existing entitlement, formatted in the same way as the output of your entitlement mapping rules (refer to the example below). The Admin Group will be granted admin privileges to all groups originating from the specified IdP. Consequently, all members of the Admin Group will inherit admin privileges for all groups from that IdP. For example, if there is "admins" group in an IdP, and it is specified as the adminGroup, users of the original "admins" group will be mapped to the Onedata "admins" group. Hence, they will automatically acquire admin privileges in the groups associated with the IdP.

  • parser & parserConfig — see below.

# Entitlement parsers

Entitlement parsers are used to convert user entitlements from an IdP to group memberships in Onedata. Two predefined parsers can handle the majority of common use cases:

  • flat_idp_group_parser — converts every entitlement into a single group membership in Onedata. Each created group has a configured group type (groupType) and the user with the corresponding entitlement is added to the group with a specified set of privileges (userPrivileges). The name of the group is derived from the entitlement but normalized to comply with allowed chars. If the IdP has a specified voGroupName, the group will be added as a subgroup with the designated set of privileges (groupPrivilegesInVo). However, if the voGroupName is not specified this parameter has no effect.

Consider the following entitlementMapping config:

entitlementMapping => #{
     enabled => true,
     voGroupName => "my-organization",
     adminGroup => undefined,
     parser => flat_entitlement_parser,
     parserConfig => #{
         groupType => team,
         groupPrivilegesInVo => member,
         userPrivileges => manager
     }
}

Suppose that the following JSON is received from the IdP:

{
     "groups": ["developers", "admins"],
     ...
}

The attribute mapping rules are:

attributeMapping => #{
     entitlements => {optional, "groups"},
     ...
}

Then, the following group structure would be created after the user logs in:

             my-organization [organization]
                 u     u
   (member privs>|     |<member privs)
                 |     |
  [team] developers   admins [team]
                u        u
  (manager privs>\      /<manager privs)
                  \    /
                  <user>
  • nested_entitlement_parser — converts every entitlement into a chain of nested groups in Onedata by splitting the input using the specified splitWith string. The created groups have configured type (topGroupType, subGroupsType), based on their position in the structure. The user with the corresponding entitlement is added only to the bottom group with the provided set of privileges (userPrivileges). The names of the groups are derived from the splitting of the entitlement, but normalized to comply with allowed chars. If the IdP has a specified voGroupName, the top group will be added as a subgroup to it with the designated set of privileges (topGroupPrivilegesInVo). All nested groups will have the type of subGroupsType and the set of privileges specified in subGroupsPrivilegesInParent towards their parent group.

Consider the following entitlementMapping config:

entitlementMapping => #{
     enabled => true,
     % Don't create a VO group, unlike in above
     % flat_entitlement_parser example, but define adminGroup
     voGroupName => undefined,
     adminGroup => "all_users:admins",
     parser => nested_entitlement_parser,
     parserConfig => #{
         splitWith => ":",
         topGroupType => unit,
         topGroupPrivilegesInVo => member,
         subGroupsType => team,
         subGroupsPrivilegesInParent => member,
         userPrivileges => manager
     }

Suppose that the following JSON is received from the IdP:

{
     "groups": [
         "all_users:admins",
         "all_users:cloud_users:vm_managers"
     ],
     ...
}

The attribute mapping rules are:

attributeMapping => #{
     entitlements => {optional, "groups"},
     ...
}

Then, the following group structure would be created after the user logs in:

                all_users [unit]
                 u     u
    (admin privs>|      \<member privs)
                 |       \
       .---------'   cloud_users [team]
      /                u   u
      \  (admin privs>/     \<member privs)
       \             /       \
        \        .--'     vm_managers [team]
         '---.  |               u    u
              \ | (admin privs>/    /<manager privs)
               \|             /    /
          [team] admins------'    /
                      u          /
        (manager privs>\        /
                        \      /
                         <user>

Note how the adminGroup ("all_users:admins") is added to all groups in the IdP with admin privileges. The user will inherit all those privileges and will effectively be an admin in all those groups.

# Group types

There are four group types in Onedata. Their purpose is to facilitate reflecting existing organizational hierarchies. Apart from the visual representation in GUI and intuitive meaning, the group type does not have a functional effect on the system usage. Their interpretation is up to the admins and users, but the recommended usage of the types is:

  • organization — represents an organization; institution or virtual organization (VO), e.g. "Elixir Europe"

  • unit — represents a unit in the organization, e.g. "R\&D department"

  • team — represents a collaborating team of users with common goals, e.g. "WP5.1"

  • role_holders — groups people that possess a certain role, e.g. "Admins" (in Onedata, there is no concept of roles — rather than that, users with the same role/privileges should be organized into groups).

# Privileges in entitlements

It is possible to specify the privileges of the user towards the bottom group of the nested structure or the privileges of the groups in the nested chain toward their parents.

User privileges in the bottom group are reconciled upon every login. They can be changed manually, but the changes will be overwritten during a consecutive login. Example:

  1. User logs in with entitlement "developers" and "manager" privileges.
  2. User is manually granted "admin" privileges in the "developers" group.
  3. User logs in again with "developers:member", which causes his privileges to be changed down to "member" — manual changes have been overwritten.

For child groups in the hierarchy, the privileges are reconciled every time a user with given group logs in. They cannot be changed manually as the groups are protected.

There are four possible sets of privileges: none, member, manager, admin. They expand to a certain set of Onedata group privileges:

  • none → []

  • member → [group_view]

  • manager → [group_add_atm_inventory,group_add_child, group_add_harvester,group_add_parent,group_add_user, group_leave_parent,group_remove_atm_inventory, group_remove_child,group_remove_harvester,group_remove_user, group_view,group_view_privileges]

  • admin → [group_add_atm_inventory,group_add_child,group_add_cluster, group_add_harvester,group_add_parent,group_add_space, group_add_user,group_create_handle, group_create_handle_service,group_delete, group_leave_cluster,group_leave_handle, group_leave_handle_service,group_leave_parent, group_leave_space,group_remove_atm_inventory, group_remove_child,group_remove_harvester,group_remove_user, group_set_privileges,group_update,group_view, group_view_privileges]

# Custom entitlement parsers (advanced)

Entitlement parsers are Erlang modules that implement entitlement_parser_behaviour. They are used to convert a raw entitlement coming from an IdP into Onedata's internal, unified format, which looks like this:

#idp_entitlement{
     idp = myIdP,
     path = [
         #idp_group{type = organization, name = <<"my-org">>, privileges = member},
         #idp_group{type = unit, name = <<"my-unit">>, privileges = member},
         #idp_group{type = team, name = <<"my-team">>, privileges = manager}
     ],
     % user privileges in the bottom group
     privileges = admin
}

Such an entitlement expresses that a chain of nested groups should be created, and the user should be added to the bottom group with the specified set of privileges. Each entry in the path denotes the type and name of the group in Onedata, as well as the privileges of that group in its parent group (if it exists). The above entitlement would result in the following group structure in Onezone:

 my-organization [organization]
     u
     |<member privs)
     |
     my-unit [unit]
         u
         |<manager privs)
         |
         my-team [team]
             u
             |<admin privs)
             |
             <user>

If the adminGroup is specified for myIdP, let's call it "admins", and the user has the following entitlements (after the mapping):

[
     #idp_entitlement{
         idp = myIdP,
         path = [
             #idp_group{type = organization, name = <<"my-org">>, privileges = member},
             #idp_group{type = unit, name = <<"my-unit">>, privileges = member},
             #idp_group{type = team, name = <<"my-team">>, privileges = manager}
         ],
         % user privileges in the bottom group
         privileges = admin
     },
     #idp_entitlement{
         path = [
             #idp_group{type = organization, name = <<"my-org">>, privileges = member},
             #idp_group{type = role_holder, name = <<"admins">>, privileges = <irrelevant>}
         ],
         privileges = manager
     }
]

Then, the following group structure would be created:

                         my-organization [organization]
                         u   u
                         |   |<member privs)
               .---------'   |
  (admin privs>|             my-unit [unit]
               |             u   u
               | .-----------'   |<manager privs)
               | |               |
               | |<admin privs)  my-team [team]
               | |                u   u
               | |   (admin privs>|   |<admin privs)
               | |                |   |
 [role_holder] admins-------------'   |
                  u                   |
   (manager privs>|                   |
                  '----------------- <user>

Furthermore, if voGroupName is specified as "my-vo-group", the whole structure is added as children to that VO (organization) group. In such case, the above entitlements would result in the following group structure:

           my-vo-group [organization]
              u   u
 (admin privs>|   |<member privs)
              |   |
       .------'   '---------------my-organization [organization]
       |                          u   u
       |                          |   |<member privs)
       |                .---------'   |
       |   (admin privs>|             my-unit [unit]
       |                |             u   u
       |                | .-----------'   |<manager privs)
       |                | |               |
       |                | |<admin privs)  my-team [team]
       |                | |                u   u
       '--------------. | |   (admin privs>|   |<admin privs)
                       \| |                |   |
         [role_holder] admins--------------'   |
                           u                   |
            (manager privs>|                   |
                           '----------------- <user>

To implement your custom entitlement parser, see the entitlement parser section.

# Auth plugins

Auth plugins are user-defined Erlang modules that can be injected into the Onezone service and used to customize the OIDC / SAML sign-on procedure. All plugins must be Erlang files with .erl extension which are expected to be found in the plugin directory /var/lib/oz_worker/plugins.

The plugins are loaded upon Onezone startup. When using a deployment with more than one node, the same plugins must be provisioned on all nodes.

NOTE

If you wish to implement your own auth plugin, we recommend contacting us (opens new window) to make the process as smooth as possible.

Plugins must conform to the predefined API that is specified in Erlang behavior modules. Refer to the oz-worker source code (opens new window) for the behaviors and implementation guide.

Each plugin must implement the onezone_plugin_behaviour, which has one callback — type/0, that returns the type of the plugin: attribute_mapper | entitlement_parser | openid_plugin.

TIP

See the corresponding behaviors for more info; entitlement_parser and attribute_mapper support validation examples are evaluated upon startup and the results are logged in Onezone logs.

# Attribute mapper

This auth plugin maps IdP attributes into Onedata attributes. It must implement the onezone_plugin_behaviour that returns the attribute_mapper atom from the type/0 callback and the attribute_mapper_behaviour. Refer to the oz-worker source code (opens new window) for the behavior module and implementation details. An exemplary custom attribute mapper (custom_attribute_mapper.erl) can be found in the plugin directory (opens new window).

# Entitlement parser

This auth plugin maps IdP entitlements into Onedata entitlements (group memberships). It must implement the onezone_plugin_behaviour that returns the entitlement_parser atom from the type/0 callback and the entitlement_parser_behaviour. Refer to the oz-worker source code (opens new window) for the behavior module and implementation details. An exemplary custom entitlement parser that supports the EGI group format (custom_entitlement_parser.erl) can be found in the plugin directory (opens new window).

# OpenID plugin

This auth plugin handles the Open ID login process. It must implement the onezone_plugin_behaviour that returns the openid_plugin atom from the type/0 callback and the openid_plugin_behaviour. Refer to the oz-worker source code (opens new window) for the behavior module and implementation details.

# Troubleshooting

In case of problems, this checklist might be useful:

  • Make sure that you have correctly placed or overwritten the auth.config file. Go to the Onezone node and examine /etc/oz_worker/auth.config. Especially in docker-based deployments, changes made on the host may not be reflected properly in the container.

  • Wait for the auth.config to be reloaded — the config is cached for 60 seconds, and any changes you introduce might take up to this time to be visible. For easier testing with frequent changes, consider using the test login page.

  • If any error occurs during the login process, see what page you are currently on:

    • The IdP page — either your auth.config has errors (the error on the IdP page should indicate the reason), or the issue is on the IdP side. In any case, try contacting the administrators, who can examine their logs and give you hints on the reason.

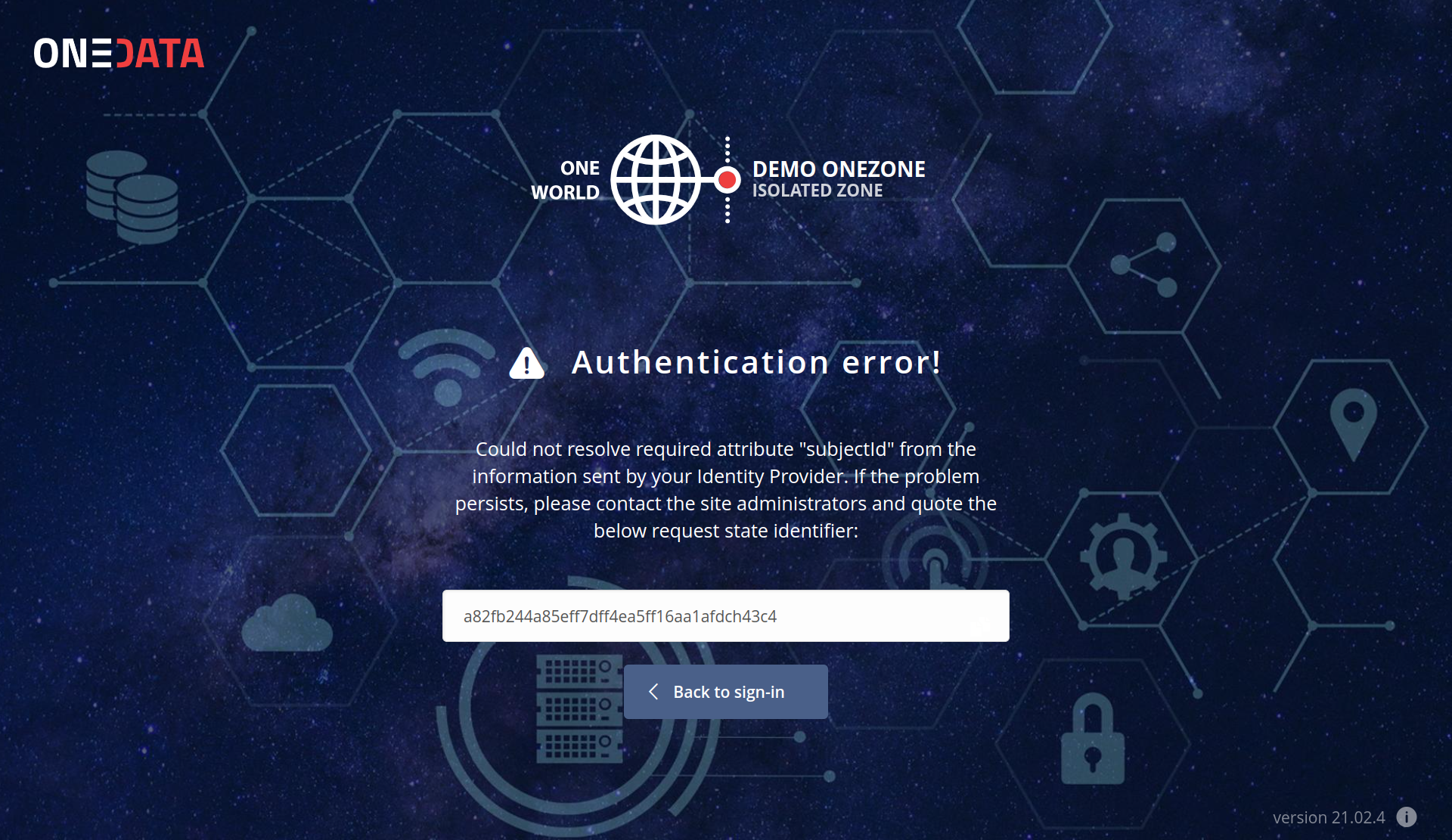

    • The Onezone GUI — see the image below. The error page will contain basic information about the error. If that is not enough to identify the problem, copy the request state identifier from the error page and check the logs — see the next point.

      screen-2-login-page-error

  • Check Onezone logs for any hints of what might have gone wrong:

    • Errors in auth.config are logged on the alert log level, they should give clear information on how to fix the config.

    • Erroneous requests are logged on different log levels, depending on the error severity. They always include the request state identifier (see the image above), so they are easy to look up.

    • Some errors with low severity are logged on the debug log level, which is disabled by default. If needed, you can turn on the debug logs (keep in mind that they have a negative impact on the system performance). After doing so, go through the login process again and take the request state identifier. You will get detailed logs from the whole login process — look them up using the state identifier. Remember to turn off the debug logs when you are finished.

# LUMA Integration

The attributes and entitlements collected from IdPs can be very useful for mapping storage users to Onedata users — see the Local User Mapping (LUMA) docs. When a provider requests LUMA to resolve storage credentials such as uid and gid, it includes the attributes collected from IdPs. These attributes can be utilized to differentiate and identify the storage users effectively.

# Custom icon guidelines

To use your custom icon on the login page, place it on the Onezone host under the path /var/www/html/oz_worker/custom/<path> and reference it in the config like this: iconPath => "/custom/<path>". If you are using docker-compose, simply mount your icon by adding a volume, for example:

# docker-compose.yaml

    ...
    volumes:
      — "/path/to/your/icon.svg:/var/www/html/oz_worker/custom/my-icon.svg"
    ...

----------------------------------------------
# test.auth.config

    ...
    iconPath => "/custom/my-icon.svg",
    ...

Please follow the guidelines below for the best visual effects:

  • The preferred image format is vector graphics in SVG.
  • Avoid raster (bitmap) graphics embedded in an SVG — some browsers (e.g. Firefox) do not handle them well.
  • If you don't have an SVG version, PNG with transparency is preferred over JPG.
  • It's best if your icon is placed on a square canvas (see the image below).
  • The canvas should be transparent, in such case iconBackground color will be visible underneath. You can use a custom background, but make sure you fill the entire canvas with it and make it a perfect square, otherwise the background color might show through.
  • In the case of a bitmap image (PNG, JPG), the canvas size should be 50×50 pixels or any multiple of it. Consider the size of 200×200 pixels for good quality on retina displays.
  • The icon canvas takes up the whole space on the login button. It means that there are no automatic margins — you should introduce the desired margins on the canvas (see the image below).
  • Make sure to center your icon on the image canvas (unless, of course, you want it to be asymmetric).

image-custom-icon

# Test login page

It is possible to test your auth.config using the test login page without interrupting the Onezone service. It also serves as a way to diagnose problems during integration with IdPs, including attribute or entitlement mapping. To use the test login page, place your auth.config on the Onezone host under the path /etc/oz_worker/test.auth.config. The test config coexists with the production /etc/oz_worker/auth.config with no interference. It is not cached at all, so you can introduce changes while the Onezone service is online and verify the results immediately. To go through the test login process, go to https://onezone.example.com/#/test/login. You will see the IdPs that are specified in your test.auth.config and an indication that this is a test login page (see the first image below). By choosing one of the IdPs, you will go through a simulation of the login process and receive a summary at the end (see the second image below). While it uses the standard flow in the IdP, on the Onezone side no users or groups (resulting from entitlements) are created in the process. The summary expresses what information would be gathered if it were a login flow in production, and includes detailed logs from the whole login process.

TIP

The SAML SP metadata XML based on the test.auth.config can be viewed under the following URL: https://onezone.example.com/saml/sp.xml?test=true

screen-3-test-login-page

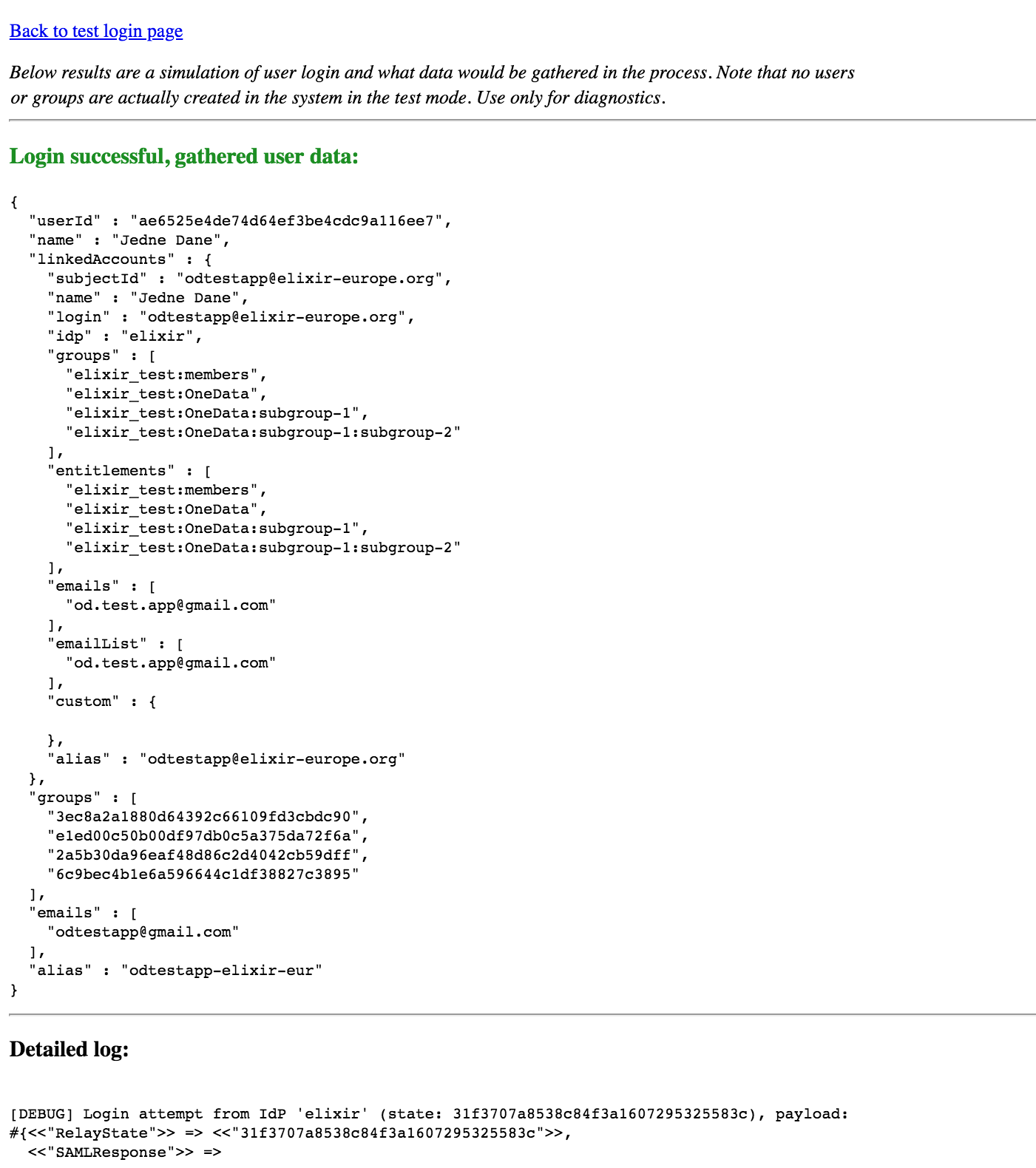

screen-4-test-login-output

# Complete example

A complete exemplary auth.config file is presented below. It can also be found on your Onezone node under /etc/oz_worker/template.auth.config.

click to expand
#{
    version => 3,

    % Allows to log in to Onezone using username & password.
    basicAuthConfig => #{
        enabled => true
    },

    openidConfig => #{
        % Enable OpenID login protocol — if disabled, all OpenID IdPs will be
        % hidden from the login page.
        enabled => true,
        % Default config for every OpenID IdP, can be overridden in IdP config
        defaultProtocolConfig => #{
            % Internal plugin that will be used for handling the login process -
            % if the IdP uses standard OpenID Connect protocol,
            % default_oidc_plugin is the way to go. If not, IdP specific plugin
            % can be implemented and specified here.
            plugin => default_oidc_plugin,
            % Config specific for default_oidc_plugin
            pluginConfig => #{
                % Scope requested from OpenID Connect IdP
                scope => "openid email profile",
                % HTTP method used to exchange auth code for an access token: post | get
                accessTokenAcquireMethod => post,
                % How the client secret should be sent to the IdP: urlencoded | inAuthHeader
                clientSecretPassMethod => urlencoded,
                % How user's access token should be sent to the IdP: urlencoded | inAuthHeader
                accessTokenPassMethod => inAuthHeader,
                % Allows to augment requests with additional data
                customData => #{
                    % Additional data for access_token endpoint request
                    accessToken => #{
                        % query string or post body parameters (key-value)
                        parameters => undefined,
                        % headers (key-value)
                        headers => undefined
                    },
                    % Additional data for userinfo endpoint request
                    userInfo => #{
                        parameters => undefined,
                        headers => undefined
                    }
                }
            },
            % Enables/disables authorization using access tokens from the IdP
            % Supported only in OpenID protocol
            authorityDelegation => #{
                % Enabled for this IdP
                enabled => true
                % The tokenPrefix attribute defines a prefix used to distinguish
                % tokens from given IdP. It defaults to "<idp>:", where <idp> is
                % the identifier used in config. Can be overriden in IdP config,
                % like the following:
                %       tokenPrefix => "my-idp/"
                % Exemplary token usage with with such config:
                % curl -H "X-Auth-Token: my-idp/lkj9s87rf1234SDfh6721hqd7991" ...
            },
            % Defines how the attributes from OpenID user info should be mapped
            % to Onedata user attributes. Attributes must correspond to existing
            % OpenID attributes.
            attributeMapping => #{
                subjectId => {required, "sub"},
                fullName => {required, {any, ["name", "fullName"]}},
                username => {optional, "username"},
                emails => {optional, "email"},
                entitlements => {optional, "groups"},
                custom => {optional, "name"}
            },
            % Rules for mapping entitlements in the IdP into entitlements in Onedata.
            entitlementMapping => #{
                enabled => false
            }
        }
    },

    samlConfig => #{
        % Enable SAML login protocol — if disabled, all SAML IdPs will be hidden
        % from the login page and the endpoint serving SAML metadata will be
        % disabled.
        enabled => true,
        % Information used to build SAML SP metadata XML, refer to SAML
        % documentation for details on below attributes.
        spConfig => #{
            entityId => "https://onezone.example.com/sp",
            certFile => "/etc/oz_worker/certs/saml_cert.pem",
            keyFile => "/etc/oz_worker/certs/saml_key.pem",
            organizationName => "My organization",
            organizationDisplayName => "My organization",
            techContactName => "John Doe",
            techContactEmail => "john.doe@onezone.example.com",
            % Should the metadata be signed with keyFile
            signMetadata => false,
            % Should the Auth Requests be signed with keyFile
            signRequests => true,
            % Should Onezone request signed assertions
            wantAssertionsSigned => true
        },
        % Default config for every SAML IdP, can be overridden in IdP config
        defaultProtocolConfig => #{
            % SSO binding — defines what type of request should be performed
            % to redirect the user to the IdP's login page. Possible values:
            % http_redirect (default) or http_post
            preferredSsoBinding => http_redirect,
            % Defines how the attributes from SAML user info should be mapped
            % to Onedata user attributes. Attributes must correspond to existing
            % SAML attributes.
            attributeMapping => #{
                subjectId => {required, "eduPersonTargetedID"},
                fullName => {required, {any, ["displayName", "surName"]}},
                username => {optional, "eduPersonPrincipalName"},
                emails => {optional, "mail"},
                entitlements => {optional, "eduPersonEntitlement"},
                custom => {optional, "eduPersonScopedAffiliation"}
            },
            % Rules for mapping entitlements in IdP into entitlements in Onedata.
            entitlementMapping => #{
                % Enable / disable entitlement mapping for given IdP
                enabled => true,
                % The name of the parent group to which all groups from this IdP
                % will belong (reflecting a Virtual Organization)
                voGroupName => undefined,
                % A special group that has admin rights to all groups from this
                % IdP.
                adminGroup => undefined,
                % Erlang module (plugin) that will be used to parse user's
                % entitlements from this IdP
                parser => nested_entitlement_parser,
                % Config specific for the nested_entitlement_parser
                parserConfig => #{
                    splitWith => "/",
                    topGroupType => unit,
                    topGroupPrivilegesInVo => member,
                    subGroupsType => team,
                    subGroupsPrivilegesInParent => member,
                    userPrivileges => member
                }
            }
        }
    },

    supportedIdps => [

        % basicAuth is a special IdP id reserved for signing in with username & password
        % and the only valid config entry using the basicAuth protocol.
        {basicAuth, #{
            % Configuration of the login page button
            displayName => "username & password",
            % Some predefined icons are built-in into the GUI app.
            % Their paths start with /assets/images/auth-providers.
            % For a custom icon, put it in:
            %   /var/www/html/oz_worker/custom/<path>
            % and reference it here like this: /custom/<path>
            iconPath => "/assets/images/auth-providers/basicauth.svg",
            % Background color is useful for icons with transparency. Moreover,
            % after selecting an IdP, its icon disappears and a spinner is
            % shown — hence background color should be kept the same as icon's
            % background color (if any).
            iconBackgroundColor => "#4BD187",

            % Which protocol is used for this IdP — basicAuth is the only
            % valid one for basicAuth IdP.
            protocol => basicAuth
        }},

        {google, #{
            % Configuration of the login page button
            displayName => "Google",
            % Some predefined icons are built-in into the GUI app.
            % Their paths start with /assets/images/auth-providers.
            % For a custom icon, put it in:
            %   /var/www/html/oz_worker/custom/<path>
            % and reference it here like this: /custom/<path>
            iconPath => "/assets/images/auth-providers/google.svg",
            % Background color is useful for icons with transparency. Moreover,
            % after selecting an IdP, its icon disappears and a spinner is
            % shown — hence background color should be kept the same as icon's
            % background color (if any).
            iconBackgroundColor => "#F1514F",

            % Which protocol is used for this IdP
            protocol => openid,
            % Configuration specific for OpenID protocol — overrides the default
            protocolConfig => #{
                % Internal plugin that will be used for handling the login process -
                % if the IdP uses standard OpenID Connect protocol,
                % default_oidc_plugin is the way to go. If not, IdP specific plugin
                % can be implemented and specified here.
                plugin => default_oidc_plugin,
                % Config specific for default_oidc_plugin
                pluginConfig => #{
                    % Client Id and secret acquired during registration
                    clientId => "****************************************************",
                    clientSecret => "****************************************************",
                    % Defines how to resolve OpenID endpoints
                    endpoints => #{
                        % The XRDS endpoint, will be used if referenced in below endpoints
                        xrds => "https://accounts.google.com/.well-known/openid-configuration",
                        % standard OIDC endpoints — literal URLs or tuples {xrds, "key"} -
                        % "key" will be extracted from the XRDS JSON.
                        authorize => {xrds, "authorization_endpoint"},
                        accessToken => {xrds, "token_endpoint"},
                        userInfo => {xrds, "userinfo_endpoint"}
                    },
                    % Scope requested from OpenID Connect IdP
                    scope => "openid email profile",
                    % HTTP method used to exchange auth code for an access token: post | get
                    accessTokenAcquireMethod => post,
                    % How the client secret should be sent to the IdP: urlencoded | inAuthHeader
                    clientSecretPassMethod => urlencoded,
                    % How user's access token should be sent to the IdP: urlencoded | inAuthHeader
                    accessTokenPassMethod => inAuthHeader,
                    % Allows to augment requests with additional data
                    customData => #{
                        % Additional data for access_token endpoint request
                        accessToken => #{
                            % query string or post body parameters (key-value)
                            parameters => #{"param1" => "val1"},
                            % headers (key-value)
                            headers => #{"header1" => "val1"}
                        },
                        % Additional data for userinfo endpoint request
                        userInfo => #{
                            parameters => #{"param2" => "val2"},
                            headers => #{"header2" => "val2"}
                        }
                    }
                },

                % Enables/disables authorization using access tokens from the IdP
                % Supported only in OpenID protocol
                authorityDelegation => #{
                    % Enabled for this IdP
                    enabled => true,
                    % The tokenPrefix attribute defines a prefix used to distinguish
                    % tokens from given IdP.
                    % Exemplary token usage with the below such config:
                    % curl -H "X-Auth-Token: google:lkj9s87rf1234SDfh6721hqd7991" ...
                    tokenPrefix => "google:"
                },
                % Defines how the attributes from OpenID user info should be mapped
                % to Onedata user attributes. Attributes must correspond to existing
                % OpenID attributes.
                attributeMapping => #{
                    subjectId => {required, "sub"},
                    fullName => {required, {any, ["name", "fullName"]}},
                    username => {optional, "username"},
                    emails => {optional, "email"},
                    entitlements => {optional, "given_name"},
                    custom => {optional, "given_name"}
                },
                % Rules for mapping entitlements in the IdP into entitlements in Onedata.
                entitlementMapping => #{
                    enabled => true,
                    % The name of the parent group to which all groups from this IdP
                    % will belong (reflecting a Virtual Organization)
                    voGroupName => undefined,
                    % A special group that has admin rights to all groups from this
                    % IdP.
                    adminGroup => undefined,
                    parser => flat_entitlement_parser,
                    parserConfig => #{
                        groupType => team,
                        groupPrivilegesInVo => member,
                        userPrivileges => member
                    }
                }
            }
        }},

        {elixir, #{
            % Configuration of the login page button
            displayName => "Elixir",
            % To use the icon like below, put it in:

            %   /var/www/html/oz_worker/custom/images/elixir.svg
            iconPath => "/custom/images/elixir.svg",
            % Background color is useful for icons with transparency. Moreover,
            % after selecting an IdP, its icon disappears and a spinner is
            % shown — hence background color should be kept the same as icon's
            % background color (if any).
            iconBackgroundColor => "#FF7A04",

            % Which protocol is used for this IdP
            protocol => saml,
            % Configuration specific for SAML protocol — overrides the default
            protocolConfig => #{
                % URL pointing to IdP SAML metadata XML
                metadataUrl => "https://login.elixir-czech.org/proxy/saml2/idp/metadata.php",
                % SSO binding — defines what type of request should be performed
                % to redirect the user to the IdP's login page. Possible values:
                % http_redirect (default) or http_post
                preferredSsoBinding => http_redirect,
                % Defines how the attributes from SAML user info should be mapped
                % to Onedata user attributes. Attributes must correspond to existing
                % SAML attributes.
                attributeMapping => #{
                    subjectId => {required, "eduPersonUniqueId"},
                    fullName => {required, "displayName"},
                    username => {optional, "eduPersonPrincipalName"},
                    emails => {optional, "mail"},
                    entitlements => {optional, "eduPersonEntitlement"},
                    custom => {optional, "eduPersonScopedAffiliation"}
                },
                % Rules for mapping entitlements in IdP into entitlements in Onedata.
                entitlementMapping => #{
                    % Enable / disable entitlement mapping for given IdP
                    enabled => true,
                    % The name of the parent group to which all groups from this IdP
                    % will belong (reflecting a Virtual Organization)
                    voGroupName => "Elixir",
                    % A special group that has admin rights to all groups from this
                    % IdP.
                    adminGroup => "elixir_test:tsi-admin",
                    % Erlang module (plugin) that will be used to parse user's
                    % entitlements from this IdP
                    parser => nested_entitlement_parser,
                    % Config specific for the nested_entitlement_parser
                    parserConfig => #{
                        splitWith => ":",
                        topGroupType => unit,
                        topGroupPrivilegesInVo => member,
                        subGroupsType => team,
                        subGroupsPrivilegesInParent => member,
                        userPrivileges => member
                    }
                }
            }
        }}
    ]
}.

# Minimal config

Minimal config that enables only basic auth (username & password login) — included by default in Onezone installation.

#{
    version => 3,

    basicAuthConfig => #{
        enabled => true
    },

    samlConfig => #{
        enabled => false
    },

    openidConfig => #{
        enabled => false
    },

    supportedIdps => [
        {basicAuth, #{
            displayName => "username & password",
            iconPath => "/assets/images/auth-providers/basicauth.svg",
            iconBackgroundColor => "#4BD187",
            protocol => basicAuth
        }}
    ]
}.

# Exemplary entries for selected IdPs

Below are some working config examples that use predefined icons, to be placed in the supportedIdps section of the config. In the case of OpenID IdPs, it is required to insert the Client ID and Secret in the config.

# Username & password login

click to expand
{basicAuth, #{
    displayName => "username & password",
    iconPath => "/assets/images/auth-providers/basicauth.svg",
    iconBackgroundColor => "#4BD187",
    protocol => basicAuth
}}

# KeyCloak config (OpenID Connect)

click to expand
{keycloakIdP, #{
    displayName => "RHEA KeyCloak",
    iconPath => "/assets/images/auth-providers/rhea.svg",
    iconBackgroundColor => "#B51017",
    protocol => openid,
    protocolConfig => #{
        plugin => default_oidc_plugin,
        pluginConfig => #{
            clientId => "****************************************************",
            clientSecret => "****************************************************",
            endpoints => #{
                xrds => "https://fed-id.nuv.la/auth/realms/SixSq/.well-known/openid-configuration",
                authorize => {xrds, "authorization_endpoint"},
                accessToken => {xrds, "token_endpoint"},
                userInfo => {xrds, "userinfo_endpoint"}
            },
            scope => "openid email profile",
            accessTokenAcquireMethod => post,
            clientSecretPassMethod => urlencoded,
            accessTokenPassMethod => inAuthHeader,
            customData => #{}
        },

        authorityDelegation => #{
            enabled => true,
            tokenPrefix => "keycloakIdP:"
        },

        attributeMapping => #{
            subjectId => {required, "sub"},
            fullName => {required, {any, ["name", "fullName"]}},
            username => {optional, "username"},
            emails => {optional, "email"},
            entitlements => {optional, {append, ["groups", "roles"]}},
            custom => {optional, "given_name"}
        },

        entitlementMapping => #{
            enabled => true,
            voGroupName => "Keycloak IdP",
            adminGroup => undefined,
            parser => nested_entitlement_parser,
            parserConfig => #{
                splitWith => "/",
                topGroupType => team,
                topGroupPrivilegesInVo => member,
                subGroupsType => team,
                subGroupsPrivilegesInParent => member,
                userPrivileges => member
            }
        }
    }
}}

# GitHub config (OpenID Connect)

click to expand
{github, #{
    displayName => "Github",
    iconPath => "/assets/images/auth-providers/github.svg",
    iconBackgroundColor => "#1E2325",
    protocol => openid,
    protocolConfig => #{
        plugin => default_oidc_plugin,
        pluginConfig => #{
            clientId => "****************************************************",
            clientSecret => "****************************************************",
            endpoints => #{
                authorize => "https://github.com/login/oauth/authorize",
                accessToken => "https://github.com/login/oauth/access_token",
                userInfo => [
                    "https://api.github.com/user",
                    {"emails", "https://api.github.com/user/emails"}
                ]
            },
            scope => "user,user:email",
            accessTokenAcquireMethod => post,
            clientSecretPassMethod => urlencoded,
            accessTokenPassMethod => urlencoded,
            customData => #{
                userInfo => #{
                    headers => #{
                        "User-Agent" => "Onedata"
                    }
                }
            }
        },

        authorityDelegation => #{
            enabled => true,
            tokenPrefix => "github:"
        },

        attributeMapping => #{
            subjectId => {required, "id"},
            fullName => {required, {any, ["name", "fullName"]}},
            username => {optional, "username"},
            emails => {optional, {nested, ["emails", {list, "email"}]}},
            entitlements => undefined,
            custom => undefined
        },

        entitlementMapping => #{
            enabled => false
        }
    }
}}

# Google config (OpenID Connect)

click to expand
{google, #{
    displayName => "Google",
    iconPath => "/assets/images/auth-providers/google.svg",
    iconBackgroundColor => "#FFFFFF",
    protocol => openid,
    protocolConfig => #{
        plugin => default_oidc_plugin,
        pluginConfig => #{
            clientId => "****************************************************",
            clientSecret => "****************************************************",
            endpoints => #{
                xrds => "https://accounts.google.com/.well-known/openid-configuration",
                authorize => {xrds, "authorization_endpoint"},
                accessToken => {xrds, "token_endpoint"},
                userInfo => {xrds, "userinfo_endpoint"}
            },
            scope => "openid email profile",
            accessTokenAcquireMethod => post,
            clientSecretPassMethod => urlencoded,
            accessTokenPassMethod => urlencoded,
            customData => #{}
        },

        authorityDelegation => #{
            enabled => true,
            tokenPrefix => "google:"
        },

        attributeMapping => #{
            subjectId => {required, "sub"},
            fullName => {required, {any, ["name", "fullName"]}},
            username => {optional, "username"},
            emails => {optional, "email"},
            entitlements => undefined,
            custom => undefined
        },

        entitlementMapping => #{
            enabled => false
        }
    }
}}

# Facebook config (OpenID Connect)

click to expand
{facebook, #{
    displayName => "Facebook",
    iconPath => "/assets/images/auth-providers/facebook.svg",
    iconBackgroundColor => "#5B87C5",
    protocol => openid,
    protocolConfig => #{
        plugin => default_oidc_plugin,
        pluginConfig => #{
            clientId => "****************************************************",
            clientSecret => "****************************************************",
            endpoints => #{
                authorize => "https://www.facebook.com/dialog/oauth",
                accessToken => "https://graph.facebook.com/oauth/access_token",
                userInfo => "https://graph.facebook.com/me"
            },
            scope => "email",
            accessTokenAcquireMethod => get,
            clientSecretPassMethod => urlencoded,
            accessTokenPassMethod => urlencoded,
            customData => #{
                userInfo => #{
                    parameters => #{
                        "fields" => "email,name"
                    }
                }
            }
        },

        authorityDelegation => #{
            enabled => true,
            tokenPrefix => "facebook:"
        },

        attributeMapping => #{
            subjectId => {required, "id"},
            fullName => {required, {any, ["name", "fullName"]}},
            username => {optional, "username"},
            emails => {optional, "email"},
            entitlements => undefined,
            custom => undefined
        },

        entitlementMapping => #{
            enabled => false
        }
    }
}}

# EGI config (OpenID Connect)

click to expand
{egi, #{
    displayName => "EGI",
    iconPath => "/assets/images/auth-providers/egi.svg",
    iconBackgroundColor => "#FFFFFF",

    protocol => openid,
    protocolConfig => #{
        plugin => default_oidc_plugin,
        pluginConfig => #{
            clientId => "****************************************************",
            clientSecret => "****************************************************",
            endpoints => #{
                xrds => "https://aai-dev.egi.eu/auth/realms/egi/.well-known/openid-configuration"
            },
            scope => "openid email profile eduperson_entitlement",
            clientSecretPassMethod => inAuthHeader,
            accessTokenPassMethod => inAuthHeader
        },

        attributeMapping => #{
            subjectId => {required, "sub"},
            fullName => {required, {any, ["name", {concat, ["given_name", {str, " "}, "family_name"]}]}},
            username => {optional, "preferred_username"},
            emails => {optional, "email"},
            entitlements => {optional, {filter, ".*#.*", "eduperson_entitlement"}},
            custom => undefined
        },

        authorityDelegation => #{
            tokenPrefix => "egi:"
        },

        entitlementMapping => #{
            enabled => true,
            adminGroup => "urn:mace:egi.eu:group:registry:egi-datahub-admins#aai.egi.eu",
            parser => custom_entitlement_parser,
            parserConfig => #{
                originGroupType => organization,
                topGroupType => team,
                subGroupsType => team
            }
        }
    }
}}

# PLGrid config (OpenID 2.0)

click to expand
{plgrid, #{
    displayName => "PLGrid OpenID",
    iconPath => "/assets/images/auth-providers/plgrid.svg",
    iconBackgroundColor => "#026381",
    protocol => openid,
    protocolConfig => #{
        plugin => plgrid_oidc_plugin,
        pluginConfig => #{
            xrds_endpoint => "https://openid.plgrid.pl/gateway"
        },

        authorityDelegation => #{
            enabled => false
        },

        attributeMapping => #{
            subjectId => {required, "openid.sreg.nickname"},
            fullName => {required, "openid.sreg.fullname"},
            username => {optional, "openid.sreg.nickname"},
            emails => {optional, "openid.sreg.email"},
            entitlements => {optional, "openid.ext1.value.teams"},
            custom => undefined
        },

        entitlementMapping => #{
            enabled => true,
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupType => team,
                groupPrivilegesInVo => member,
                userPrivileges => member
            }
        }
    }
}}

# CERN config (SAML)

click to expand
{cern, #{
    displayName => <<"CERN (eduGAIN)">>,
    iconBackgroundColor => <<"#0053A1">>,
    iconPath => <<"/assets/images/auth-providers/cern.svg">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "https://met.refeds.org/met/entity/https%3A//cern.ch/login/?viewxml=true&federation=incommon-federation",
        preferredSsoBinding => http_post,
        attributeMapping => #{
            subjectId => {required, "eduPersonUniqueID"},
            fullName => {optional, "displayName"},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "mail"},
            entitlements => {optional, "eduPersonAffiliation"},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => false,
            adminGroup => undefined,
            voGroupName => "cern",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

# CNRS config (SAML)

click to expand
{cnrs, #{
    displayName => <<"CNRS (eduGAIN)">>,
    iconBackgroundColor => <<"#FFF">>,
    iconPath => <<"/assets/images/auth-providers/cnrs.svg">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "https://met.refeds.org/met/entity/https%3A//janus.cnrs.fr/idp/?viewxml=true&federation=federation-education-recherche",
        preferredSsoBinding => http_redirect,
        attributeMapping => #{
            subjectId => {required, "eduPersonTargetedID"},
            fullName => {optional, "displayName"},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "mail"},
            entitlements => {optional, "eduPersonEntitlement"},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => false,
            adminGroup => undefined,
            voGroupName => "cnrs",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

# DESY config (SAML)

click to expand
{desy, #{
    displayName => <<"DESY (eduGAIN)">>,
    iconBackgroundColor => <<"#FFF">>,
    iconPath => <<"/assets/images/auth-providers/desy.svg">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "https://idp1.desy.de/idp/shibboleth",
        preferredSsoBinding => http_redirect,
        attributeMapping => #{
            subjectId => {required, "eduPersonPrincipalName"},
            fullName => {optional, "displayName"},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "mail"},
            entitlements => {optional, "eduPersonEntitlement"},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => false,
            adminGroup => undefined,
            voGroupName => "desy",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

# Elixir config (SAML)

click to expand
{elixir, #{
    displayName => <<"Elixir">>,
    iconBackgroundColor => <<"#FF7A04">>,
    iconPath => <<"/assets/images/auth-providers/elixir.svg">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "https://login.elixir-czech.org/proxy/saml2/idp/metadata.php",
        preferredSsoBinding => http_redirect,
        attributeMapping => #{
            subjectId => {required, "eduPersonUniqueID"},
            fullName => {optional, "displayName"},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "mail"},
            entitlements => {optional, "eduPersonEntitlement"},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => true,
            adminGroup => "vo:elixir_test/tm:HNSciCloud/tm:tsi-admin",
            voGroupName => "elixir",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

# EMBL config (SAML)

click to expand
{embl, #{
    displayName => <<"EMBL (eduGAIN)">>,
    iconBackgroundColor => <<"#FFF">>,
    iconPath => <<"/assets/images/auth-providers/embl.svg">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "https://idp.ebi.ac.uk/idp/shibboleth",
        preferredSsoBinding => http_redirect,
        attributeMapping => #{
            subjectId => {required, "eduPersonTargetedID"},
            fullName => {optional, "displayName"},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "mail"},
            entitlements => {optional, "eduPersonEntitlement"},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => false,
            adminGroup => undefined,
            voGroupName => "embl",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

# ESRF config (SAML)

click to expand
{esrf, #{
    displayName => <<"ESRF (eduGAIN)">>,
    iconBackgroundColor => <<"#FFF">>,
    iconPath => <<"/assets/images/auth-providers/esrf.svg">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "https://met.refeds.org/met/entity/https%3A//websso.esrf.fr/auth/realms/ESRF/?viewxml=true",
        preferredSsoBinding => http_redirect,
        attributeMapping => #{
            subjectId => {required, "eduPersonTargetedID"},
            fullName => {optional, "displayName"},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "mail"},
            entitlements => {optional, "eduPersonEntitlement"},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => false,
            adminGroup => undefined,
            voGroupName => "esrf",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

# IFAE config (SAML)

click to expand
{ifae, #{
    displayName => <<"IFAE (eduGAIN)">>,
    iconBackgroundColor => <<"#FFF">>,
    iconPath => <<"/assets/images/auth-providers/ifae.jpg">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "https://met.refeds.org/met/entity/https%3A//www.rediris.es/sir/ifaeidp/?viewxml=true",
        preferredSsoBinding => http_redirect,
        attributeMapping => #{
            subjectId => {required, "eduPersonTargetedID"},
            fullName => {optional, "displayName"},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "mail"},
            entitlements => {optional, "eduPersonEntitlement"},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => false,
            adminGroup => undefined,
            voGroupName => "ifae",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

# INFN config (SAML)

click to expand
{infn, #{
    displayName => <<"INFN (eduGAIN)">>,
    iconBackgroundColor => <<"#FFF">>,
    iconPath => <<"/assets/images/auth-providers/infn.svg">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "https://idp.infn.it/saml2/idp/metadata.php",
        preferredSsoBinding => http_redirect,
        attributeMapping => #{
            subjectId => {required, "eduPersonTargetedID"},
            fullName => {optional, "displayName"},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "mail"},
            entitlements => {optional, "eduPersonEntitlement"},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => false,
            adminGroup => undefined,
            voGroupName => "infn",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

# KIT config (SAML)

click to expand
{kit, #{
    displayName => <<"KIT (eduGAIN)">>,
    iconBackgroundColor => <<"#FFF">>,
    iconPath => <<"/assets/images/auth-providers/kit.svg">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "https://met.refeds.org/met/entity/https%3A//idp.scc.kit.edu/idp/shibboleth/?viewxml=true",
        preferredSsoBinding => http_redirect,
        attributeMapping => #{
            subjectId => {required, "eduPersonPrincipalName"},
            fullName => {optional, "surName"},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "mail"},
            entitlements => {optional, "eduPersonEntitlement"},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => false,
            adminGroup => undefined,
            voGroupName => "kit",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

# STFC config (SAML)

click to expand
{stfc, #{
    displayName => <<"STFC (eduGAIN)">>,
    iconBackgroundColor => <<"#1C3764">>,
    iconPath => <<"/assets/images/auth-providers/stfc.svg">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "https://met.refeds.org/met/entity/https%3A//idp02.stfc.ac.uk/shibboleth/?viewxml=true",
        preferredSsoBinding => http_redirect,
        attributeMapping => #{
            subjectId => {required, "eduPersonTargetedID"},
            fullName => {optional, "displayName"},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "mail"},
            entitlements => {optional, "eduPersonEntitlement"},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => false,
            adminGroup => undefined,
            voGroupName => "stfc",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

# UnitedID config (SAML)

click to expand
{unitedid, #{
    displayName => <<"UnitedID">>,
    iconBackgroundColor => <<"#ABDFF1">>,
    iconPath => <<"/assets/images/auth-providers/unitedid.png">>,
    protocol => saml,
    protocolConfig => #{
        metadataUrl => "http://md.unitedid.org/idp.xml",
        preferredSsoBinding => http_redirect,
        attributeMapping => #{
            subjectId => {required, "eduPersonTargetedID"},
            fullName => {optional, undefined},
            username => {optional, "eduPersonPrincipalName"},
            email => {optional, "eduPersonPrincipalName"},
            entitlements => {optional, undefined},
            custom => undefined
        },
        entitlementMapping => #{
            enabled => false,
            adminGroup => undefined,
            voGroupName => "unitedid",
            parser => flat_entitlement_parser,
            parserConfig => #{
                groupPrivilegesInVo => member,
                groupType => team,
                userPrivileges => member
            }
        }
    }
}}

← OIDC — Google IdP tutorial →
