# Storage backends

# Configuration

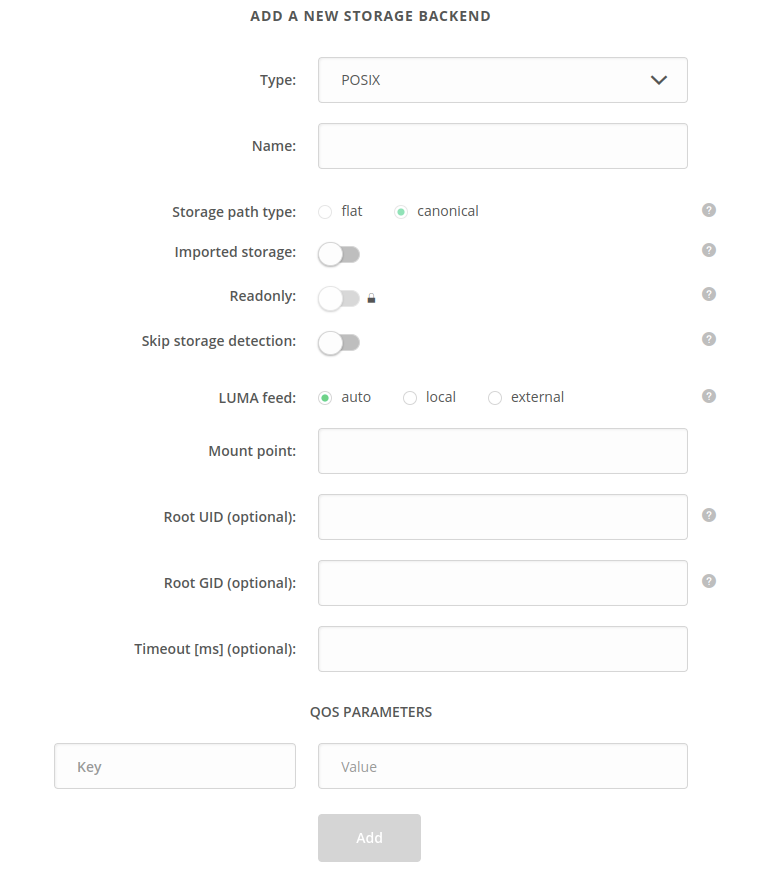

Onepanel GUI allows creating, editing and deleting storage backends under the Storage backends menu. All storage configuration options are available during storage creation (see below picture and descriptions). After the storage is created, only some parameters can be changed so as not to break the data integrity.

screen-storage-config

# Storage type

Determines the type of corresponding storage backend.

The currently supported storage backends include:

Please consult the Add storage REST request (opens new window) for comprehensive description of type-specific configuration parameters. The parameters are visible after selecting the specific type of storage from the dropdown in the request body specification.

# Storage name

A unique name for the storage resource.

# Storage path type

Determines how the logical file paths are mapped on the storage:

  • canonical paths reflect the logical file names and directory structure, however each rename operation requires renaming the files on the storage which may result in copying the file blocks on some storage backends. Canonical path type is obligatory for an imported storage.
  • flat paths are based on unique file UUID's and do not require on-storage rename when logical file name is changed.

# Imported storage

Option Imported storage determines if the contents of this storage should be imported to the Onedata space supported with the storage. This option should be enabled in two setups:

  • There is a legacy data collection located on the storage, which should be imported into a space.
  • The data on storage is to be modified directly by third party applications, bypassing the provider interfaces, and the changes should be reflected in the supported space.

NOTE: Storage that is marked as an imported storage can be used to support just one space.

NOTE: Only one out of supporting providers can support the space with an imported storage.

Supporting the space with an imported storage results in enabling the storage import, which allows registering storage files in the space without copying any data. More information can be found here.

Please make sure that the storage backend for which you intend to enable Imported storage option is supported. Consult the list of supported backends and the required configuration for manual and auto import modes.

# Read-only

Option Readonly determines that the storage is to be treated by the Oneprovider as read-only. In such case, Oneprovider does not attempt to create, modify or delete files on the storage. File blocks cannot be replicated onto the storage from other providers. For above reasons, storage import is effectively the only way to use such storage within a space — in consequence the Readonly option is available only for an imported storage. The imported data will be available in read-only mode, unless replicated to other providers.

This option can be chosen even if the provider has write access to the storage, but the admin decides that it should be perceived as read-only. However, if the storage is indeed read-only (prevents making any changes), Readonly must be enabled for correct operation of the Oneprovider service.

If you wish to use Oneclient in Direct I/O mode on a read-only storage, remember to pass the --force-direct-io option to the Oneclient application. Additionally, on POSIX-compatible storage backends, the mount-point must be passed manually. Consult Oneclient's documentation for --force-direct-io and --override options.

# LUMA feed

Option LUMA feed determines type of feed for Local User Mapping Database. There are 3 possible values:

  • auto
  • local
  • external

For more information on configuration of LUMA DB feed, see here.

# Timeout

Timeout for storage operations in milliseconds. This parameter is optional, the default is 120 seconds.

# QoS Parameters

Quality of service parameters. For more information on configuration of Quality of Service mechanism, see here.

# Verification and monitoring

When adding a new storage backend or modifying an existing one, Oneprovider performs read/write tests in order to determine whether the provided configuration is valid and the storage backend can be accessed. Write tests are skipped for read-only storage backends.

Additionally, storage health checks are performed periodically. Upon failure, the access to all spaces supported by the storage backend is blocked until it becomes accessible again.

# REST API

All operations on storage resources can be performed using the REST API. Refer to the linked API documentation for detailed information and examples.

Request Link to API
Create storage API (opens new window)
Get storage details API (opens new window)
Update storage API (opens new window)
Remove storage API (opens new window)
List storage resources API (opens new window)
