# REST API

This chapter provides a brief introduction to the usage of the Onedata REST API.

# Available APIs (services)

Onedata consists of three main types of services that form its architecture. Each service has its corresponding API, which is documented using OpenAPI (also known as Swagger):

  • Onezone — API for managing high-level resources such as users, groups, spaces, etc, realized by the Onezone Worker server — see the docs (opens new window).

  • Oneprovider — API for data management, complemented by CDMI API, realized by the Oneprovider Worker server — see the docs (opens new window).

  • Onepanel — admin API for managing service clusters, realized by the Onezone Panel or Oneprovider Panel server — see the docs (opens new window).

image-rest-api-services

# Endpoints

The REST API endpoint location depends on the service type and domain.

Assume the following domains:

  • Onezone: onezone.plgrid.pl
  • Oneprovider: oneprovider.cyfronet.pl

Then, the APIs can be accessed using the following endpoints:

Service API endpoint
Onezone Worker https://onezone.plgrid.pl/api/v3/onezone/{...}
Oneprovider Worker https://oneprovider.cyfronet.pl/api/v3/oneprovider/{...}
Onezone Panel (admins only) https://onezone.plgrid.pl/api/v3/onepanel/{...}
or
https://onezone.plgrid.pl:9443/api/v3/onepanel/{...}
Oneprovider Panel (admins only) https://oneprovider.cyfronet.pl/api/v3/onepanel/{...}
or
https://oneprovider.cyfronet.pl:9443/api/v3/onepanel/{...}

NOTE

The Onepanel API endpoints are exposed by Onezone and Oneprovider Worker servers and proxied to Onepanel servers. Port 9443 can be used to directly access the Onepanel server from within the cluster's local network.

Users should be aware of the Onezone domain as it serves as their entry point to the system, providing them with a login page — see the user quickstart guide. Instructions on how to determine the domain of a Oneprovider service can be found here.

# Access tokens

Access tokens are universally used to authorize API requests in all services. Follow this guide to acquire an access token.

# Oneprovider ID

Some endpoints (e.g. in Oneprovider's Data Transfers API) require the provider ID. You can find it with the following REST query (you will need the provider domain):

curl "https://${ONEPROVIDER_DOMAIN}/api/v3/oneprovider/configuration" | jq .providerId

"2ee1df8b32302fee25042a538b26473ech7ae7"

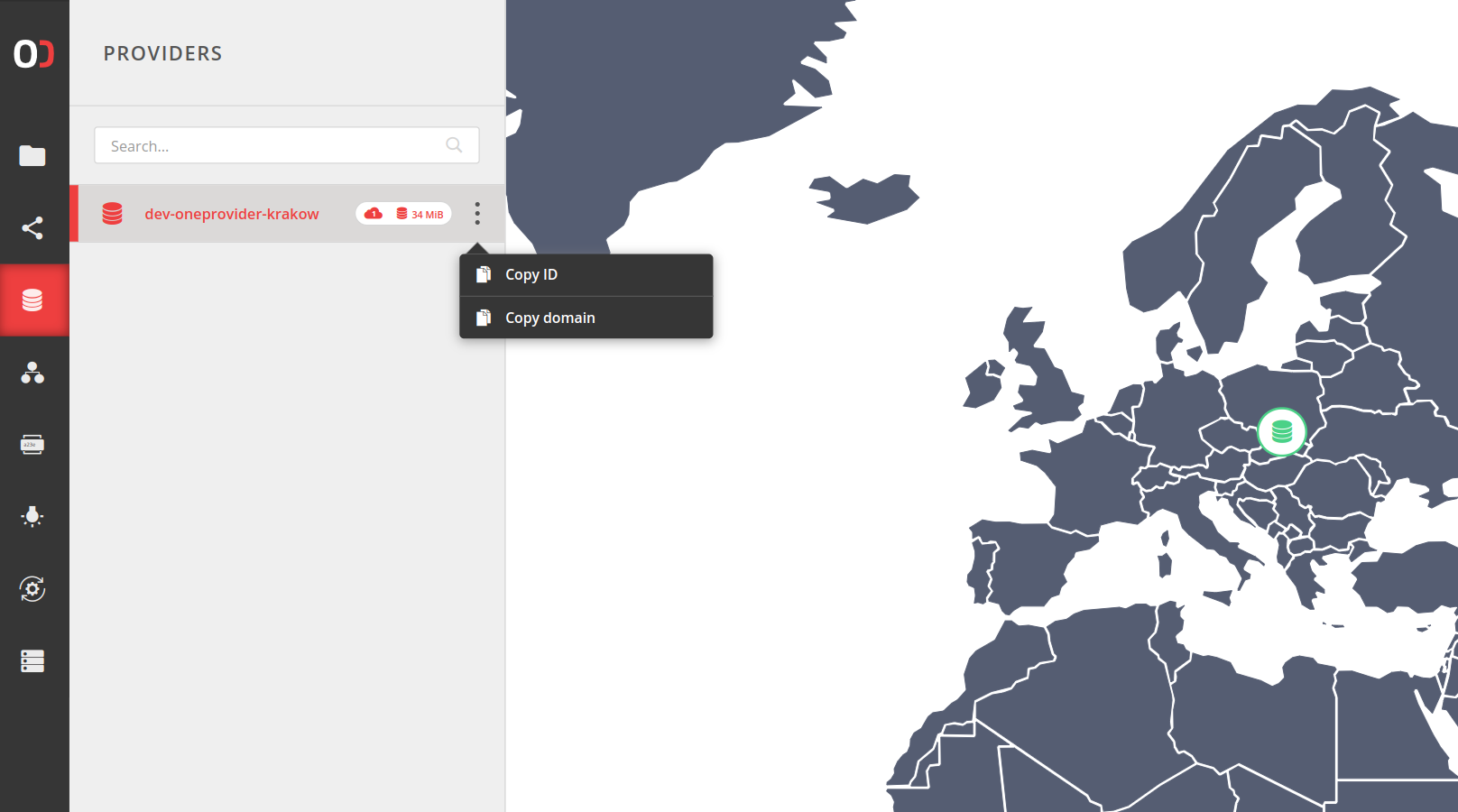

Alternatively, the ID can be retrieved from the GUI:

screen-copy-provider-id
